15-20t/h Poultry Feed Production Line

This feed production line is suitable for large commerical feed factory, could make chicken, sheep, cow, shrimp feed

Capacity:15-20t/h

Workers requirments:4-5 people

Shipment requirments:6*40ft container

size for whole line:According to land size and layout

Poultry Feed Pellet Production Line for 1 ton/h Processing Poultry Feed Pellet Production Line Automated Feed Production Line Equipment 1-10 TPH Animal Feed Pellet Production Line Turnkey Plan

Introduction
Parameters
Service

Description

15-20t/h Poultry Feed Production Line is a complete set of equipment for producing poultry, livestock and aquatic feed pellets. For example: chicken, broiler, laying hen, cattle, sheep, pig, rabbit, fish, etc. Pellets of different sizes and shapes can be produced by simply changing the mold. The finished pellet size ranges from 1mm to 12mm, suitable for different stages of feed.

Poultry Feed Pellet Production Line for 30 ton/h Processing Mill

Scope of application

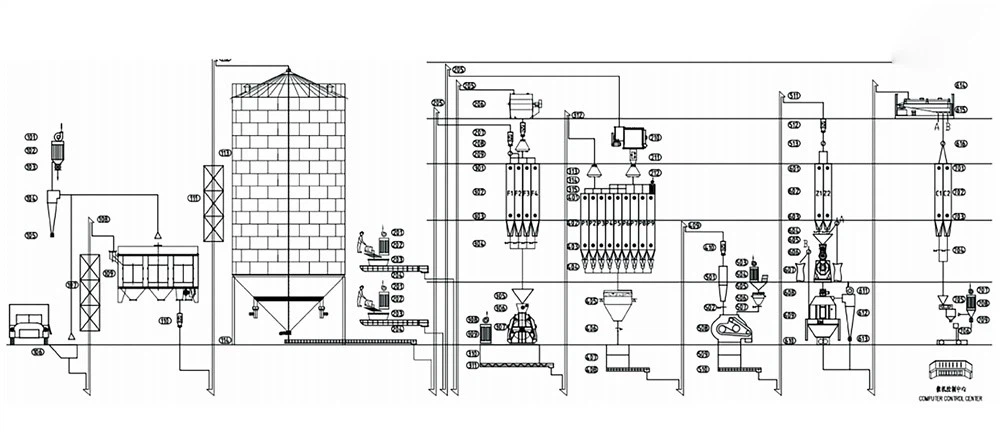

Key Equipment Of The animal feed pellet production line

Raw material warehouse

Before pelleting, feed raw materials are stored here to facilitate the subsequent pelleting process, which is an indispensable part of feed pellet production.

Bucket elevator

Bucket elevator is a continuous conveying machine that uses a series of buckets evenly fixed on an endless traction member to vertically lift materials.

Raw material cleaning system

Bulk grain received from farms often includes grain by-products and impurities such as straw, stones, metal, paper, small animal carcasses and fines. This section remove these impurities through magnets, screeners, and dust collectors to ensure that the stored grain is of good quality and to protect the machinery.

Raw material automatic distribution and weighing system

Working principle of automatic weighing and batching system: After the system is started, the control unit sends instructions to the feeding unit according to the preset mixing formula, and each feeding device transports the powder in the storage bin to the metering unit at the corresponding speed and flow rate.

Mixing system

Mixing is a key link in the production of compound feed. Components with unique properties are blended together to formulate rations under the action of external forces to meet the nutritional needs of animals and add value to the blended product.

Pelletizing system

The feed pelleting system converts the feed paste into shaped large pellets. Feed granulation is accomplished through a mechanical process using a combination of moisture, heat and pressure. Ring die feed pellet machine will used in this section.

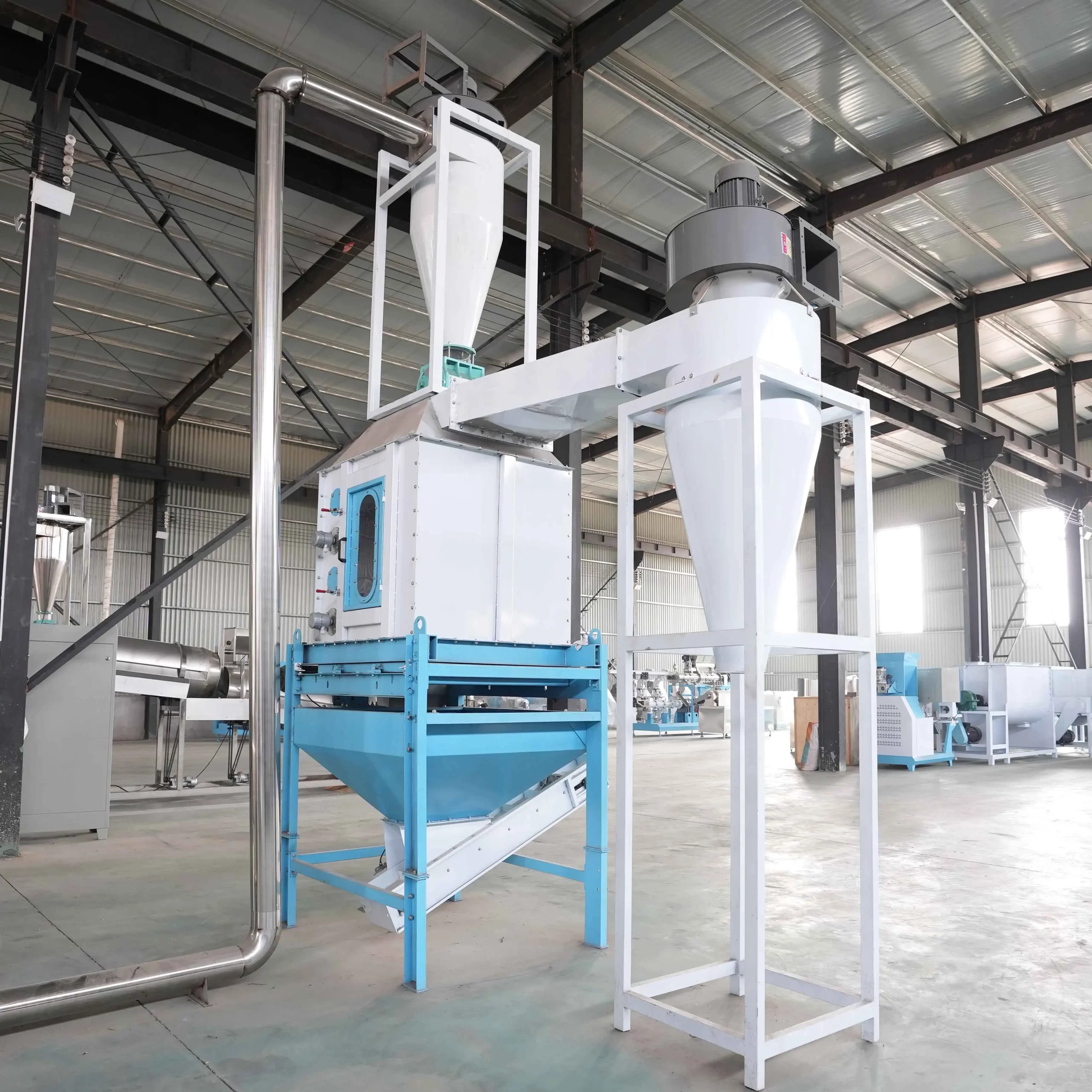

Cooling system

During feed pelleting, cooling of the feed pellets is essential. When leaving the pellet mill, the feed pellets are very hot, soft and rich in moisture, the cooling process cools them down to 3°C-5°C slightly above room temperature and reduces their moisture content to a safe standard (≤12.5%), For easy transportation and storage.

Screen system

The central control system can intelligently control the system, intuitively see the data, control each part through the screen, and also monitor each part well.

Packaging system

The device mainly consists of three parts: automatic weighing and packaging machine, conveying device and sewing device. It is mainly suitable for quantitative packaging of granular and granular powder mixed materials.

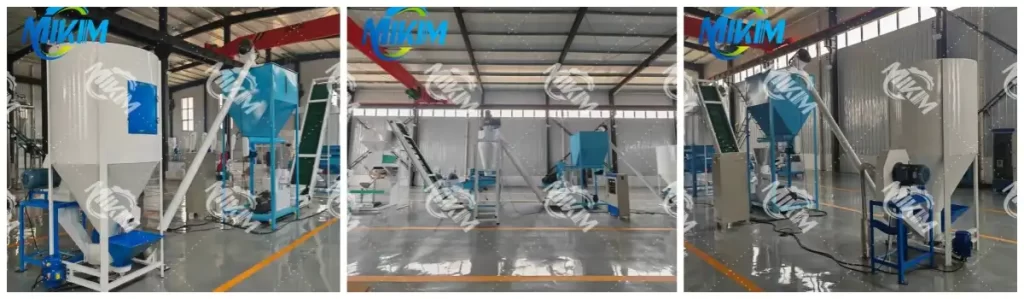

Poultry Feed Production Line Workshop real shot

Poultry feed pellet production line factory

Specification Parameters

Capacity	15-20t/h
Range of application	large commerical feed factory,could make chicken,sheep,cow,shrimp feed
Workers requirments	4-5 people
Shipment requirments	6*40ft container
Product advantages	Fully automatic intelligent batching, computer control system with stable output, efficient and continuous operation, labor saving, direct packaging, particle size can be selected from 1-12mm.
size for whole line	According to land size and layout

Service Support

15-20t/h Poultry Feed Production Line

FAQ

1. How can I check the status of my order?

We will send you photos and videos of each stage of the order in time and keep you updated. We will provide excellent service and remind you every step of the process from booking, transportation to the arrival of the goods. We can also provide you with the shipping company website for your convenience.

2. Unable to install and operate?

We have engineers in different countries and you can call them directly whenever you need help. We also provide online guidance in China. We also have detailed operation videos and manuals to help you, ensuring that your equipment is 100% operational.

3. Still worried about the lack of after-sales guarantee?

7*24 online service. You can contact us at any time through multiple channels such as WhatsApp and Facebook.
