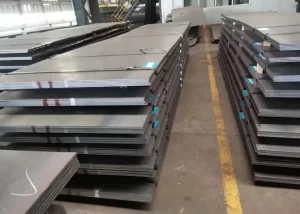

AH40/DH40/EH40 High-Strength Marine Steel Plates image
  • AH40/DH40/EH40 High-Strength Marine Steel Plates image 1
  • AH40/DH40/EH40 High-Strength Marine Steel Plates image 2
  • AH40/DH40/EH40 High-Strength Marine Steel Plates image 3
  • AH40/DH40/EH40 High-Strength Marine Steel Plates image 4
  • AH40/DH40/EH40 High-Strength Marine Steel Plates image 5
  • AH40/DH40/EH40 High-Strength Marine Steel Plates image 6

AH40/DH40/EH40 High-Strength Marine Steel Plates

Steel Standard:LR AH40/DH40/EH40

Rolling Type:Shipbuilding steel plate,High tension ship plate

Thickness:3mm-250mm

Width:1200mm-4200mm

Length:3000mm-18000mm

Heat Treatment:TMCP/Normalised

AH40/DH40/EH40 High-Strength Marine Steel Plates Supplier

AH40, DH40, and EH40 are premium ​high-tensile shipbuilding steels certified by leading classification societies (e.g., CCS, ABS, DNV, BV). Designed for critical marine applications, these grades excel in ​strength, low-temperature toughness, and corrosion resistance, meeting the rigorous demands of modern shipbuilding and offshore engineering.



Applications

  • Shipbuilding: Hulls, decks, bulkheads (AH40); LNG carrier components (EH40); ice-class vessels (DH40).
  • Offshore Engineering: Oil rigs, subsea pipelines, and drilling platforms.
  • Infrastructure: Heavy-duty bridges and coastal structures requiring high corrosion resistance.



Why Choose AH40/DH40/EH40?

  1. Extreme Environment Performance: EH40 withstands -40°C, DH40 excels in polar conditions, and AH40 offers cost-effective strength for tropical waters.
  2. Global Compliance: Recognized by 116 flag authorities via CCS certification.
  3. End-to-End Support: Full documentation, including mill test reports and tailored packaging.

Contact us for technical datasheets or customized solutions.

Specification Parameters
Basic Information

AH40/DH40/EH40 High-Strength Marine Steel Chemical Composition

Steel grade C Si Mn P S Als
Grade AH40 ≤0.18 ≤0.50 0.9-1.6 ≤0.035 ≤0.035 ≥0.015
Grade DH40 ≤0.18 ≤0.50 0.9-1.6 ≤0.035 ≤0.035 ≥0.015
Grade EH40 ≤0.18 ≤0.50 0.9-1.6 ≤0.035 ≤0.035 ≥0.015
Grade FH40 ≤0.18 ≤0.50 0.9-1.6 ≤0.035 ≤0.035 ≥0.015

AH40/DH40/EH40 Steel Mechanical Properties

Steel grade Yield point/MPa Tensile point /MPa Elongation/% Temperature/° C V-type impact test
Akv/J
≤50MM 50-70MM 70-100MM
Grade AH40 ≥390 510-660 ≥20 0 41/21
Grade DH40 ≥390 510-660 ≥20 -20 41/21
Grade EH40 ≥390 510-660 ≥20 -40 41/21
Grade FH40 ≥390 510-660 ≥20 -60 41/21
Service Support
AH40/DH40/EH40 High-Strength Marine Steel Plates

We also supply other LR shipbuilding steel materials:

LR grade A LR grade B LR grade D LR grade E
LR AH32 LR DH32 LR EH32 LR FH32
LR AH36 LR DH36 LR EH36 LR FH36
LR AH40 LR DH40 LR EH40 LR FH40
