Home > Steel Pipe> ASTM A213 T22 Alloy Steel Seamless Tubes

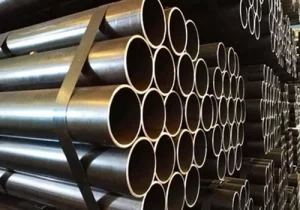

ASTM A213 T22 Alloy Steel Seamless Tubes image
  • ASTM A213 T22 Alloy Steel Seamless Tubes image 1
  • ASTM A213 T22 Alloy Steel Seamless Tubes image 2
  • ASTM A213 T22 Alloy Steel Seamless Tubes image 3
  • ASTM A213 T22 Alloy Steel Seamless Tubes image 4
  • ASTM A213 T22 Alloy Steel Seamless Tubes image 5
  • ASTM A213 T22 Alloy Steel Seamless Tubes image 6

ASTM A213 T22 Alloy Steel Seamless Tubes

Standard: ASTM A213 / ASME SA213 T22

Type: Seamless ferritic alloy steel tubes

Outer Diameter (OD): 12.7 mm to 127 mm (0.5 in. to 5 in.)

Wall Thickness (WT): 0.9 mm to 12.7 mm (0.035 in. to 0.5 in.)

Length: Standard 6M or customized lengths

Ends: Plain End, Beveled End, Threaded

Surface Treatment: Varnished (outside only) to prevent rust

A213 T22 Alloy Steel Seamless Tubes A213 T22 alloy-steel boiler pipes ASTM A213 T22 Seamless Ferritic Alloy-Steel Boiler Tubes

ASTM A213 T22 Alloy Steel Seamless Tubes Manufacturer

We export ASTM A213 T22 alloy steel seamless tubes, designed for high-temperature service in boilers, superheaters, and heat exchangers. Compliant with the ASTM A213 / ASME SA213 T22 standard, our T22 tubes offer excellent creep strength and oxidation resistance, ideal for industrial applications.

GNEE Steel delivers high-quality T22 alloy steel tubes with reliable service. We offer customization of SA213 Gr T22 Tubing in various shapes, sizes, and lengths to precisely meet your project requirements, all at competitive market prices. Our commitment is to deliver products of optimum quality that fulfill every customer specification.

What are ASTM A213 T22 alloy steel seamless tubes?

ASTM A213 T22 alloy steel seamless tubes are a critical component in applications involving elevated temperatures and pressures. This specification covers seamless ferritic and austenitic alloy-steel boiler, superheater, and heat-exchanger tubes. The T22 grade, a chrome moly alloy, is specifically designed for its excellent strength, resistance to creep, and corrosion resistance at high temperatures. It is often referred to by its ASME equivalent, ASME SA213 T22. The UNS K21590 T22 designation also identifies this versatile alloy, widely used as T22 boiler tubes and SA213 heater tubes in demanding industrial settings.

Product Specifications

Our ASTM A213 T22 seamless tubes are manufactured to the ASTM A213 / ASME SA213 specification, ensuring precision through seamless processes.

  • Standard: ASTM A213 / ASME SA213 T22
  • Type: Seamless ferritic alloy steel tubes
  • Size Range:
    • Outer Diameter (OD): 12.7 mm to 127 mm (0.5 in. to 5 in.)
    • Wall Thickness (WT): 0.9 mm to 12.7 mm (0.035 in. to 0.5 in.)
    • Length: Standard 6M or customized lengths
  • Ends: Plain End, Beveled End, Threaded
  • Surface Treatment: Varnished (outside only) to prevent rust

These specifications make our ASTM A213 T22 tubes a reliable choice for high-temperature use.

Specification Parameters
Basic Information

Chemical Composition of ASTM A213 T22 Seamless Boiler Tubes

Grade Chemical Composition(%)
C Mn P S Si Cr Mo
A213 T22 0.05-0.15 0.30-0.60 ≤0.025 ≤0.025 ≤0.50 1.90-2.60 0.87-1.13



Mechanical Properties of ASTM A213 T22 Seamless Boiler Tubes

Grade Tensile Strength(MPa) Yield Strength(MPa) Elongation(%) Hardness(HB)
A213 T22 ≥415 ≥205 30 ≤163

Mechanical property requirements do not apply to tubing smaller than 1 ⁄ 8in. [3.2 mm] in inside diameter or thinner than 0.015 in. [0.4 mm] in thickness.



A213 Gr T22 Alloy Steel Seamless Tubes Outside Diameter & Tolerance :

Hot rolled Outside Diameter, mm Tolerance, mm
OD≤101.6 +0.4/-0.8
101.6＜OD≤190.5 +0.4/-1.2
190.5＜OD≤228.6 +0.4/-1.6
Cold Drawn Outside Diameter, mm Tolerance, mm
OD＜25.4 ±0.10
25.4≤OD≤38.1 ±0.15
38.1＜OD＜50.8 ±0.20
50.8≤OD＜63.5 ±0.25
63.5≤OD＜76.2 ±0.30
76.2≤OD≤101.6 ±0.38
101.6＜OD≤190.5 +0.38/-0.64
190.5＜OD≤228.6 +0.38/-1.14



SA213 T22 Alloy Steel Tube Wall thickness & Tolerance :

Hot rolled Outside Diameter, mm Tolerance, %
OD≤101.6, WT≤2.4 +40/-0
OD≤101.6, 2.4＜WT≤3.8 +35/-0
OD≤101.6, 3.8＜WT≤4.6 +33/-0
OD≤101.6, WT>4.6 +28/-0
OD>101.6, 2.4＜WT≤3.8 +35/-0
OD>101.6, 3.8＜WT≤4.6 +33/-0
OD>101.6, WT>4.6 +28/-0
Cold Drawn Outside Diameter, mm Tolerance, %
OD≤38.1 +20/-0
OD>38.1 +22/-0
Service Support
ASTM A213 T22 Alloy Steel Seamless Tubes

Tests

(1)Tension test——One tension test shall be made on a specimen from one tube for lots of not more than 50 tubes. Tension tests shall be made on specimens from two tubes for lots of more than 50 tubes.
(2)Hardness Requirements—— Brinell, Vickers, or Rockwell hardness tests shall be made on specimens from two tubes from each lot.
(3)Flattening Test——One flattening test shall be made on specimens from each end of one finished tube.
(4)Flaring Test——One flaring test shall be made on specimens from each end of one finished tube.


Surface Condition

Ferritic alloy cold-finished steel tubes are free of scale and suitable for inspection.
Ferritic alloy hot-finished steel tubes are free of loose scale and suitable for inspection.

Note: Material furnished under ASTM A213 conform to the applicable requirements of the current edition of Specification A1016/A1016M

Why Choose GNEE Steel?

As an exporter of ASTM A213 T12 seamless alloy steel tubes, GNEE Steel provides:

  • Reliable Supply: Consistent stock.
  • Competitive Pricing: Affordable rates.
  • Superior Service: Dedicated support.
  • Timely Delivery: Fast shipping.
