Home > Steel Pipe> ASTM A213 T5 Alloy Steel Tube
ASTM A213 T5 Alloy Steel Tube image
  • ASTM A213 T5 Alloy Steel Tube image 1
  • ASTM A213 T5 Alloy Steel Tube image 2

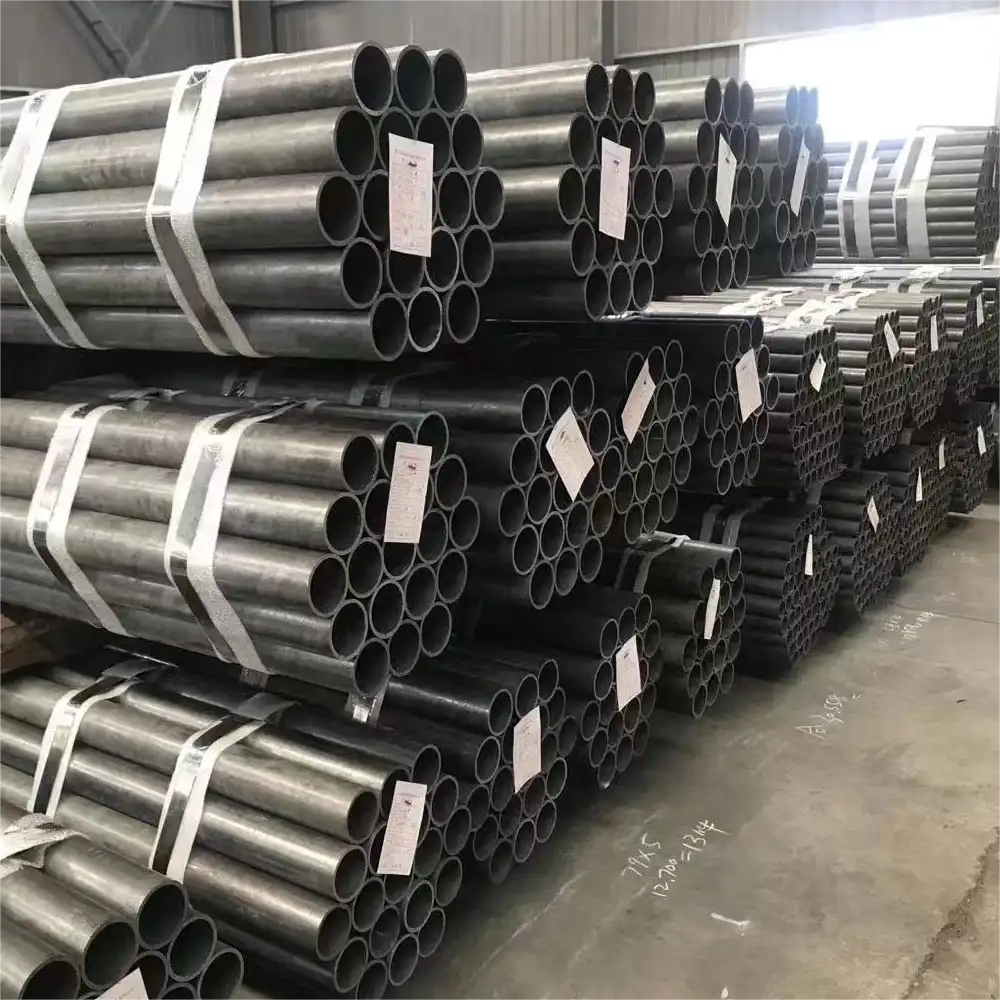

  • ASTM A213 T5 Alloy Steel Tube image 3
  • ASTM A213 T5 Alloy Steel Tube image 4

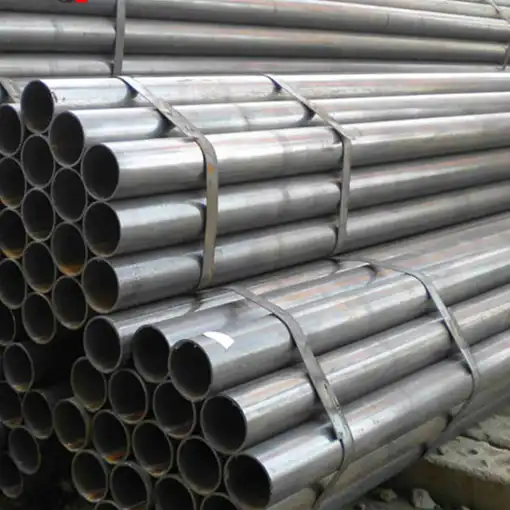

  • ASTM A213 T5 Alloy Steel Tube image 5
  • ASTM A213 T5 Alloy Steel Tube image 6

ASTM A213 T5 Alloy Steel Tube

Standard: ASTM A213 / ASME SA213 T5

Type: Seamless ferritic alloy steel tubes

Outer Diameter (OD): 12.7 mm to 127 mm (0.5 in. to 5 in.)

Wall Thickness (WT): 0.9 mm to 12.7 mm (0.035 in. to 0.5 in.)

Length: Standard 6M or customized lengths

Ends: Plain End, Beveled End, Threaded

Surface Treatment: Varnished (outside only) to prevent rust

ASME SA213 T5 Alloy Steel Seamless Tubes ASME SA213 T5 Alloy Steel SMLS Tubes ASTM A213 T5 Seamless Alloy-Steel Tubes ASME SA213 Grade T5 pipe

ASME SA213 T5 Alloy Steel Seamless Tubes Manufacturer

ASTM A213 / ASME SA213 T5 Alloy Steel SMLS Tubes are used in various application industries like Petroleum, chemical, power, gas, water, metallurgy, shipbuilding, construction, etc. These products are presented in different shapes and sizes, grades they are applicable both for engineering and industrial purpose. We are offered at competitive prices, these are developed using advanced technology. We are a reputed venture. We believe in providing top-notch quality of these Astm A213/asme Sa213 Standard Tubing / T5 Alloy Grade Material Tubing to our valuable clients.

Applications & Industries Served by ASTM A213 T5 Tubes

Industries: Oil & Gas, Petrochemical, Power Generation, Chemical Processing, Refineries.

Applications:

  • Boilers (T5 boiler tubes)
  • Superheaters
  • Heat Exchangers (ASTM A213 T5 heat exchanger tubes)
  • Furnace parts
  • High-temperature piping systems
  • Sour service applications (due to Cr content)

Specification ASTM A213 T5 / ASME SA213 T5 Alloy Steel Tube

Size (Seamless) 6.35mm o.d to 101.60mm o.d
Standards ASTM A213, ASME SA213
Equivalent Standards EN 10216-2, ASTM A335, GOST 550-75, WN 1.7362, K41545
Material P5, K41545
Equivalent Material T5, 15Ch5M
Type Seamless
Specialized in Large Diameter Size
Outer Dimensions 6-2500mm; WT:1-200mm
Wall Thickness Schedule 3mm to 15mm.
Length max 1~12m
Schedule STD, SCH40, SCH80
Form Round, Square, Rectangular, Hydraulic Etc.
Length Single Random, Double Random & Cut Length.
Tubing End Plain End, Beveled End, Treaded.
Specification Parameters
Basic Information

Chemical Compositions of ASTM A213 / ASME SA213 T5 Alloy Steel SMLS Tubes:

C, % Mn, % P, % S, % Si, % Cr, % Mo, %
0.15 max 0.30-0.60 0.025 max 0.025 max 0.50 max 4.00-6.00 0.45-0.65



Mechanical Properties ASTM A213 / ASME SA213 T5 Alloy Steel SMLS Tubes:

Tensile Strength , MPa Yield Strength, MPa Elongation, % Hardness, HB
415 min 205 min 30 min 163 max



Alloy Steel T5 Outside Diameter & Tolerance :

Hot rolled Outside Diameter, mm Tolerance, mm
OD≤101.6 +0.4/-0.8
101.6＜OD≤190.5 +0.4/-1.2
190.5＜OD≤228.6 +0.4/-1.6
Cold Drawn Outside Diameter, mm Tolerance, mm
OD＜25.4 ±0.10
25.4≤OD≤38.1 ±0.15
38.1＜OD＜50.8 ±0.20
50.8≤OD＜63.5 ±0.25
63.5≤OD＜76.2 ±0.30
76.2≤OD≤101.6 ±0.38
101.6＜OD≤190.5 +0.38/-0.64
190.5＜OD≤228.6 +0.38/-1.14



Grade T5 Wall thickness & Tolerance:

Hot rolled Outside Diameter, mm Tolerance, %
OD≤101.6, WT≤2.4 +40/-0
OD≤101.6, 2.4＜WT≤3.8 +35/-0
OD≤101.6, 3.8＜WT≤4.6 +33/-0
OD≤101.6, WT>4.6 +28/-0
OD>101.6, 2.4＜WT≤3.8 +35/-0
OD>101.6, 3.8＜WT≤4.6 +33/-0
OD>101.6, WT>4.6 +28/-0
Cold Drawn Outside Diameter, mm Tolerance, %
OD≤38.1 +20/-0
OD>38.1 +22/-0
Service Support
ASTM A213 T5 Alloy Steel Tube

Why Choose US for Your ASTM A213 T5 Alloy Steel Seamless Tubes?

  • Manufacturing Excellence: In‐house seamless mill ensuring consistent wall thickness, superior surface finish, and strict adherence to T5 specifications.
  • Global Exports & Supply: Extensive experience serving customers in USA, Canada, UAE, Saudi Arabia, Europe, Southeast Asia, and worldwide. Proven track record of reliable international delivery.
  • Fast Turnaround & Inventory: Large stock of ASTM A213 T5 tubes for quick dispatch. Efficient production planning for custom orders.
  • Certified Quality Assurance: ISO 9001 certified. All T5 tubes supplied with EN 10204 3.1 Mill Test Certificates (MTC). Option for 3.2 MTC witnessed by third‐party inspection agencies (TUV, DNV,
  • Lloyd’s, BV, SGS etc.).
  • Technical Support & Expertise: Our team of expert metallurgists and engineers are available 24/7 to provide guidance on T5 tube selection, design considerations, and application suitability.
  • Competitive Pricing: Direct mill prices ensure cost-effectiveness without compromising on quality.
