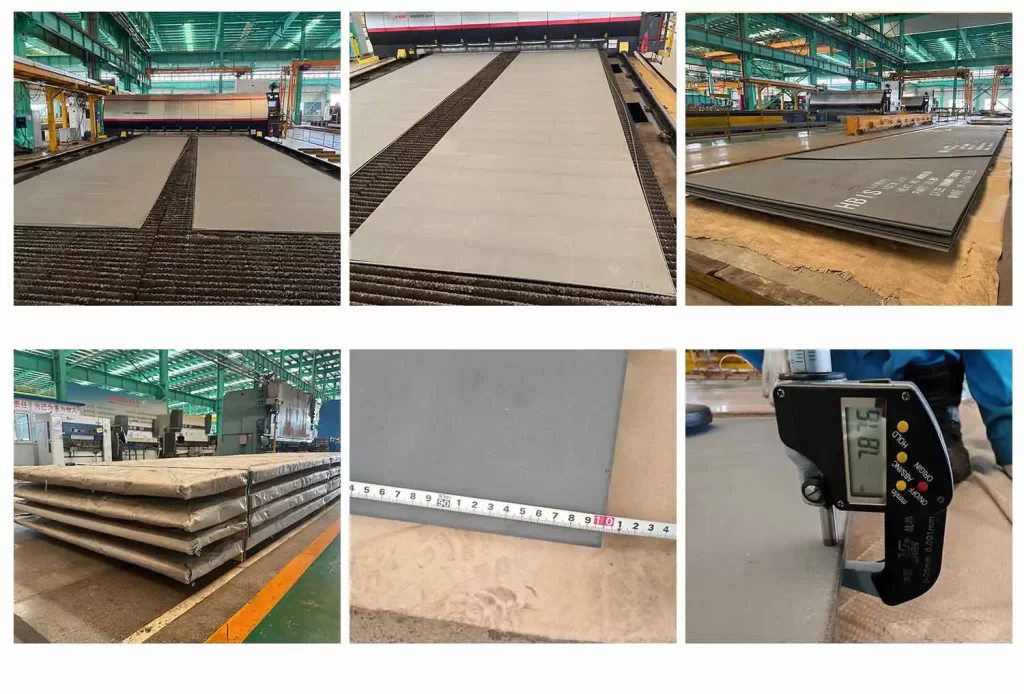

Astm A36 Carbon Steel Plate image
  • Astm A36 Carbon Steel Plate image 1
  • Astm A36 Carbon Steel Plate image 2
  • Astm A36 Carbon Steel Plate image 3
  • Astm A36 Carbon Steel Plate image 4
  • Astm A36 Carbon Steel Plate image 5
  • Astm A36 Carbon Steel Plate image 6

Astm A36 Carbon Steel Plate

SA-36 structural carbon steel has good weldability and is suitable for common welding processes, such as arc welding, gas shielded welding, etc. This makes it easy to process and join in structural engineering.

Reference Price: $580.00 - $650.00
inquiry now

ASTM A36 Carbon Steel Plate Brief Introduction

ASTM A36 Carbon Steel Plate is a US standard carbon structural steel. This low-carbon steel grade contains chemical alloys, giving it characteristics such as workability, ductility, and strength, making it ideal for use in the construction of various structures. It is widely used in fields such as construction, machinery manufacturing, shipbuilding, and automobile manufacturing. Its chemical composition includes elements such as carbon, silicon, and manganese, giving it excellent mechanical properties and workability.

ASTM A36 steel supplier

ASTM A36 Carbon Steel Plate Technical Data

Chemical Composition

Element Content
Carbon, C 0.25 – 0.290 %
Copper, Cu 0.20 %
Iron, Fe 98.0 %
Manganese, Mn 1.03 %
Phosphorus, P  0.040 %
Silicon, Si 0.280 %
Sulfur, S  0.050 %

Physical Properties

Physical Properties Metric Imperial
Density 7.85 g/cm3 0.284 lb/in3

Mechanical Properties

Mechanical Properties Metric Imperial
Tensile Strength, Ultimate 400 – 550 MPa 58000 – 79800 psi
Tensile Strength, Yield 250 MPa 36300 psi
Elongation at Break (in 200 mm) 20.0 % 20.0 %
Elongation at Break (in 50 mm) 23.0 % 23.0 %
Modulus of Elasticity 200 GPa 29000 ksi
Bulk Modulus (typical for steel) 140 GPa 20300 ksi
Poissons Ratio 0.260 0.260
Shear Modulus 79.3 GPa 11500 ksi

​A36 Steel Plate structural carbon steel​ exhibits the following characteristics:

  1. ​Excellent Weldability​
    SA-36 structural carbon steel offers superior weldability, making it compatible with common welding processes such as arc welding and gas-shielded welding. This facilitates easy processing and connection in structural engineering applications.

  2. ​Outstanding Mechanical Properties​
    SA-36 structural carbon steel delivers moderate strength and toughness, suitable for typical structural uses. It generally provides robust tensile strength​​ (400–550 MPa) and yield strength​​ (≥250 MPa), enabling it to withstand substantial loads and stress.

  3. ​Low Carbon Content​
    The carbon content in SA-36 structural carbon steel is as low as 0.25%​​ (typically 0.25%–0.35%), ensuring excellent plasticity and workability. This allows it to be easily formed and machined into components of various shapes and sizes.

  4. ​Broad Applications​
    SA-36 structural carbon steel is ​​widely used​​ in structural engineering projects, including:

    • Construction (e.g., building frames, beams, columns);
    • Bridges and infrastructure;
    • Shipbuilding (e.g., hulls, decks);
    • Pipelines and pressure vessels.
  5. ​Reliability and Cost-Effectiveness​
    SA-36 structural carbon steel combines reliable performance with economic advantages. Its stable properties and relatively low cost make it a preferred choice for meeting the requirements of most structural engineering projects.

Specification Parameters
Specification Parameters
Item

Specification

​​Product Name​​ ASTM A36 Carbon Steel Plate, AH36 A36 A38 Carbon Steel Plate, Construction Steel Plate
​​Width​​ 0.6m – 3m or as required
​​Length​​ 4m – 12m or as required
​​Thickness​​ 3mm – 300mm or as required
​​Standard​​ AISI, ASTM, DIN, JIS, GB, SUS, EN, etc.
​​Technology​​ Hot rolled
​​Surface Treatment​​ Cleaned, sandblasted, and painted as per customer requirements
​​Thickness Tolerance​​ ±0.1mm
