Home > products> CCS Shipbuilding Steel Plate

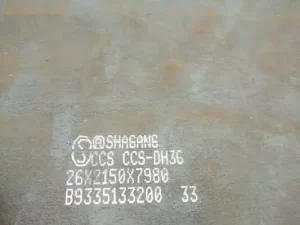

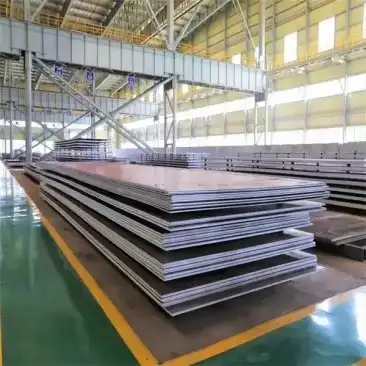

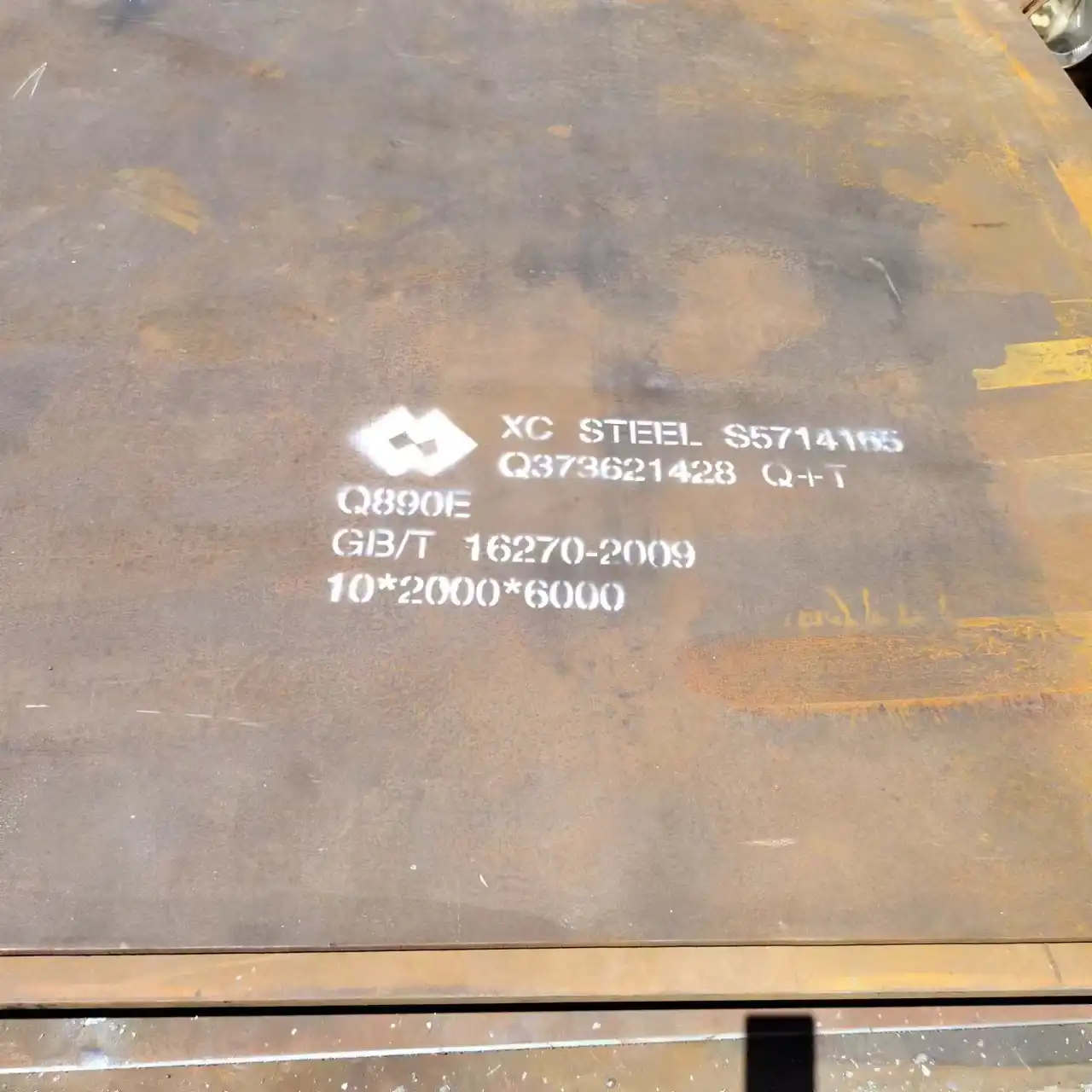

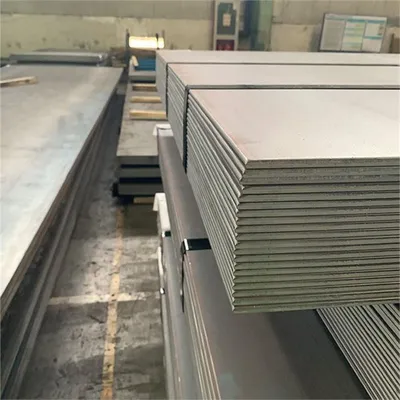

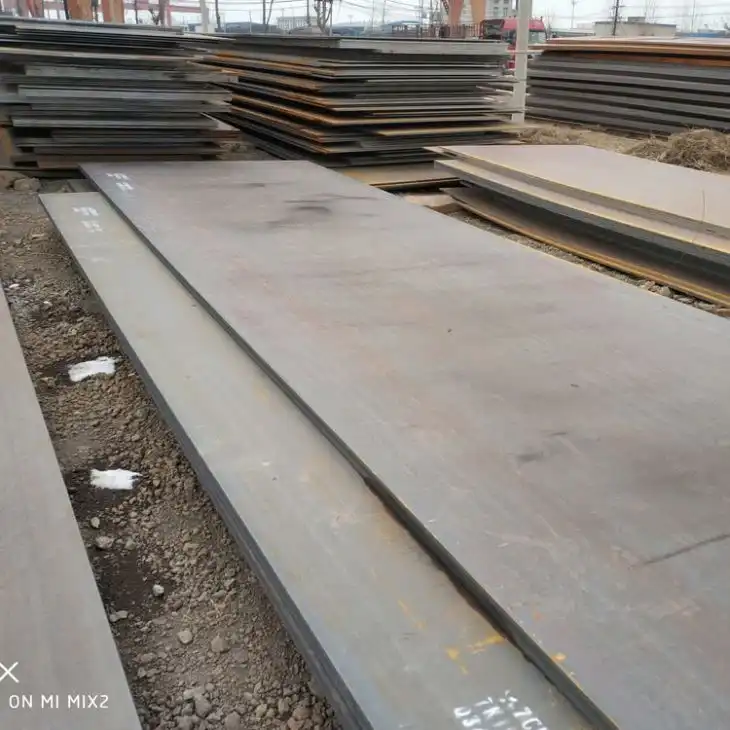

CCS Shipbuilding Steel Plate image
  • CCS Shipbuilding Steel Plate image 1
  • CCS Shipbuilding Steel Plate image 2
  • CCS Shipbuilding Steel Plate image 3
  • CCS Shipbuilding Steel Plate image 4
  • CCS Shipbuilding Steel Plate image 5
  • CCS Shipbuilding Steel Plate image 6

CCS Shipbuilding Steel Plate

Standard: CCS

Width:1000-2000mm

Length:2000-12000mm

Thickness:0.5-100mm

Grade:CCS A,B,C,D,AH32,AH36,AH40,AQ47,DH32,DH36,DH40...

CCS Grade A steel plate CCS GRADE A Grade A STEEL PLATE CCS/Lr/Rina Shipbuilding Steel Plate

What is CCS shipbuilding steel plate?

CCS shipbuilding steel refers to ship steel materials that meet the standards of the China Classification Society. CCS is one of the internationally recognized classification societies, providing classification and certification services for ships and offshore engineering equipment.

Classification of CCS Ship Steel

CCS shipbuilding steel can be classified into multiple grades based on its usage and performance.

  • Normal Strength Hull Structural Steel: CCS Grades A, B, D, E
  • High Strength Hull Structural Steel: CCS Grades AH32, DH32, EH32, AH36, DH36, EH36
  • Extra High Strength Hull Structural Steel: CCS Grades AH40, DH40, EH40

Applications of CCS Ship Steel

  • Hull Structures
    Primarily used for the construction of keels, sides, decks, and bottoms of ships.
  • Offshore Engineering Equipment
    Includes offshore platforms, drilling rigs, and offshore wind power equipment.
  • Ship Accessories
    Such as cargo holds, oil tanks, and supports for ship equipment.



Specification Parameters
Basic Information

CCS Grade Shipbuilding Steel Plate Chemical Composition

Grade C Mn≥ Si P S
CCS A 0.21 2.5×C 0.5 0.035 0.035
CCS B 0.21 2.5×C 0.5 0.035 0.035
CCS D 0.21 2.5×C 0.5 0.035 0.035
CCS E 0.21 2.5×C 0.5 0.035 0.035
CCS AH32 0.18 0.90-1.60 0.10-0.50 0.035 0.035
CCS AH36 0.18 0.90-1.60 0.10-0.50 0.035 0.035
CCS AH40 0.18 0.90-1.60 0.10-0.50 0.035 0.035
CCS AQ47 0.21 0.55 1.7 0.035 0.035
CCS AQ51 0.21 0.55 1.7 0.035 0.035
CCS AQ56 0.21 0.55 1.7 0.035 0.035
CCS AQ63 0.21 0.55 1.7 0.035 0.035
CCS AQ70 0.21 0.55 1.7 0.035 0.035
CCS DH32 0.18 0.90-1.60 0.10-0.50 0.035 0.035
CCS DH36 0.18 0.90-1.60 0.10-0.50 0.035 0.035
CCS DH40 0.18 0.90-1.60 0.10-0.50 0.035 0.035
CCS DQ47 0.21 0.55 1.7 0.035 0.035
CCS DQ51 0.21 0.55 1.7 0.035 0.035
CCS DQ56 0.21 0.55 1.7 0.035 0.035
CCS DQ63 0.21 0.55 1.7 0.035 0.035
CCS DQ70 0.21 0.55 1.7 0.035 0.035
CCS EH32 0.18 0.90-1.60 0.10-0.50 0.035 0.035
CCS EH36 0.18 0.90-1.60 0.10-0.50 0.035 0.035
CCS EH40 0.18 0.90-1.60 0.10-0.50 0.035 0.035
CCS EQ47 0.21 0.55 1.7 0.035 0.035
CCS EQ51 0.21 0.55 1.7 0.035 0.035
CCS EQ56 0.21 0.55 1.7 0.035 0.035
CCS EQ63 0.21 0.55 1.7 0.035 0.035
CCS EQ70 0.21 0.55 1.7 0.035 0.035
CCS FH32 0.16 0.90-1.60 0.10-0.50 0.035 0.035
CCS FH36 0.16 0.90-1.60 0.10-0.50 0.035 0.035
CCS FH40 0.18 0.90-1.60 0.10-0.50 0.035 0.035
CCS FQ47 0.21 0.55 1.7 0.035 0.035
CCS FQ51 0.16 0.55 1.7 0.035 0.035
CCS FQ56 0.21 0.55 1.7 0.035 0.035
CCS FQ63 0.21 0.55 1.7 0.035 0.035
CCS FQ70 0.21 0.55 1.7 0.035 0.035

Hot Sale CCS Shipbuilding Steel Mechanical Property

Grade Tensile Strength(MPa) Yield Strength(MPa) % Elongation in 2 in.(50mm) min Impacting Test Temperature(°C)
CCS A 400-520 235 22 20
CCS B 400-520 235 22 0
CCS D 400-520 235 22 -20
CCS E 400-520 235 22 -20
CCS AH32 440-590 315 22 0
CCS AH36 440-590 315 22 0
CCS AH40 510-650 390 22 0
CCS AQ47 460 570-720 17-19 20
CCS AQ51 500 610-770 16-18 0
CCS AQ56 500 610-770 16-18 0
CCS AQ63 620 720-890 15-17 0
CCS AQ70 690 770-940 14-16 0
CCS DH32 440-590 315 22 -20
CCS DH36 440-590 315 22 -20
CCS DH40 510-650 390 22 -20
CCS DHQ47 460 570-720 17-19 -20
CCS DQ51 500 610-770 16-18 -20
CCS DQ56 550 670-830 16-18 -20
CCS DQ63 620 720-890 15-17 -20
CCS DQ70 690 770-940 14-16 -20
CCS EH32 440-590 315 22 -40
CCS EH36 440-590 315 22 -40
CCS EH40 510-650 390 22 -40
CCS EQ47 460 570-720 17-19 -40
CCS EQ51 500 610-770 16-18 -40
CCS EQ56 550 670-830 16-18 -40
CCS EQ63 620 720-890 15-17 -40
CCS EQ70 690 770-940 14-16 -40
CCS FH32 440-590 315 22 -40
CCS FH36 440-590 315 22 -60
CCS FH40 510-650 390 22 -60
CCS FQ47 460 570-720 17-19 -60
CCS FQ51 500 610-770 16-18 -60
CCS FQ56 550 670-830 16-18 -60
CCS FQ63 620 720-890 15-17 -60
CCS FQ70 690 770-940 14-16 -60
Service Support
CCS Shipbuilding Steel Plate

Technical Requirements & Additional Services:

  • High tension test
  • Z-Test (Z15,Z25,Z35)
  • Low temperature impacting test
  • Ultrasonic test under ASTM A435,A577,A578
  • Cetificated by ABS,LR,GL,BV,DNV,KR,NK,CCS,RINA
  • Issued Orginal Mill test certificate under EN 10204 FORMAT 3.1/3.2
  • Shot blasting and Painting,Cutting and welding as per end user’s demands
