Customized Cattle Feed Production Line

The main equipment of the cattle feed pellet production line includes feed crushers, feed mixers, feed pelletizers, coolers, rotary screeners, etc. Click below to design your customized production line.

Cattle Feed Production Line Factory

The Mikim Cattle Feed Production Line is designed to produce feed for ruminants in various pellet sizes, such as 4mm, 6mm, 8mm, and 10mm. We can provide free, customized designs tailored to your specific requirements, with capacities ranging from 1 to 100 tons per hour. The Mikim Animal Feed Production Line is designed to produce feed for ruminant animals in various sizes, including 4mm, 6mm, 8mm, and 10mm feed, suitable for cattle, dairy cows, camels, and sheep. Mikim Machinery is your comprehensive feed project solutions provider.

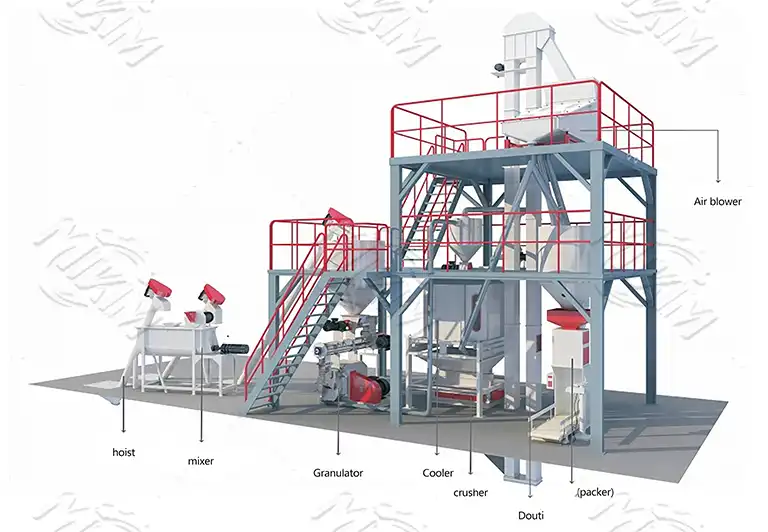

Automated cattle feed production lines mainly include crushers, mixers, pellet mills, coolers, rotary screeners, delivery systems, and so on.



Submit your inquiry, and our professional sales consultants will provide you with a personalized quotation.

Automated Cattle Feed Production Line Equipment

Particle Crusher:

The cattle feed crusher can grind raw material components to the desired particle size. The fineness of cattle feed can be 2 millimeters or larger, since cattle regurgitate. Slightly coarser feed facilitates regurgitation and improves digestibility. Feed for older cattle should be ground to less than 1 millimeter to aid digestion. If the raw materials contain grass, a specialized feed grinder must be used.

Raw Material Mixing and Blending Machine:

Mixing is considered one of the essential operations in cattle feed pellet processing. A mixer is used to blend the ground raw materials. Our mixers include the U-Type Ribbon Mixer, Stainless Steel Mixer, and Double-Shaft Paddle Mixer. Cattle feed contains grass, which is very lightweight. Therefore, the proportion of grass in the formula should be calculated, and the appropriate mixer model should be selected for your efficient pellet feed production line.

Cattle Feed Pellet Machine:

We offer flat die feed pellet machines, ring mold feed pellet machines, diesel feed pellet machines, and complete poultry or livestock feed production lines. The quality of the conditioner directly determines the quality of the cattle feed pellets. You can customize the conditioner according to your specific needs to suit different raw materials or cattle feed production.

Pellet Cooler:

The cattle feed pellets produced by the pellet machine are hot and humid, with temperatures around 80–90°C. They cannot be immediately crushed, screened, or packaged. A counterflow cooler is used to cool the high-temperature, high-humidity cattle feed pellets.

Conveyor:

In the cattle feed pellet production line, raw materials or finished products are typically transported before processing. This requires a complete conveying system. Raw materials are unloaded into the conveyor channel, transported by a scraper conveyor to the lifting point, and finally elevated to the silo for storage.

Automatic Packaging Machine:

Finished pellets that require packaging are processed using an automatic packaging machine. Those that do not require packaging are transported in bulk trucks.

Cattle Feed Production Line Applicable Types

Young cows, calves, breeding cattle, beef cattle, etc.

Automated Cattle Feed Production Line Factory

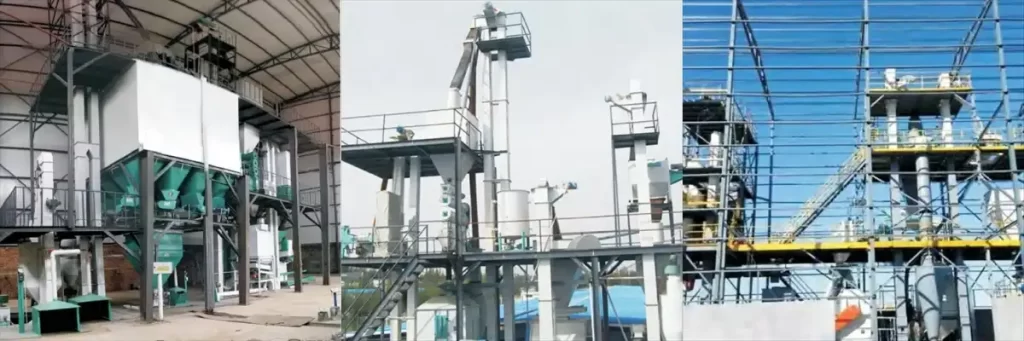

Customer Case



High-efficiency Poultry Feed Pellet Production Line

Specification Parameters
Configuration Parameter



Production Capacity 1-2ton/application
Total Power 68 Kw
Application Scope Suitable for small/medium commercial feed factory/big farm
Product Advantages Stable output, high efficiency, easy to operate and maintain, small overall dimensions, labor saving, large processing range, high pellet forming rate
Process Flow 1-crusher-2-crusher-3-mixer-4-forage cutter-5-5m belt conveyor-6-6m belt conveyor-7-6m belt conveyor-8-small bucket elevator-9-12m belt conveyor-10-packing machine
Size of Whole Line 12×4×9m
Workers Required 2-3 people
Transportation 40ft container
Service Support
Customized Cattle Feed Production Line

Why choose our cattle feed production line?

1️⃣ Intelligent processing system:

Utilizing automated control technology enables precise regulation of the entire feed production process—from formulation and mixing to pelleting and packaging—reducing human error and enhancing production efficiency.


2️⃣Turnkey solutions:

Covering design, installation, commissioning, training, and after-sales maintenance to ensure rapid startup of the production line.


3️⃣Customized solutions:

Providing flexible configurations based on farming scale (e.g., family farms or large enterprises), with small-scale lines suitable for 2–5 mm pellets and large-scale lines that support 8 mm pellet customization.
