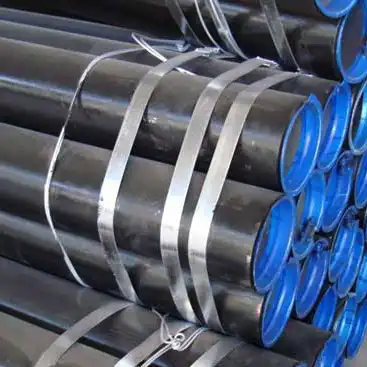

DIN 17175 10CrMo9-10 Seamless Alloy Steel Pipe

Standard: DIN 17175

Meterials: 10CrMo9-10

Manufacture: Seamless process

Out Dimensions: 14 mm-711 mm

Wall Thickness: 2mm-60mm

Length: Fixed(6m,9m,12,24m) or normal length(5-12m)

Ends: Plain End, Beveled End, Treaded

Din 17175 Alloy Steel Pipe DIN 17175 10CrMo9-10 Seamless Alloy Steel Pipe DIN 17175 seamless tubes 10crmo910 1.7380 Heat Resistant Seamless Steel Pipe DIN 17175 10CrMo910 seamless steel tubes 10CrMo9-10 Steel DlN 1.7380 Boiler

Introduction
Parameters
Service

DIN 17175 10CrMo9-10 Seamless Alloy Steel Pipe Supplier

DIN 17175 10CrMo910 seamless steel tubes are designed to withstand high temperatures and high pressures, making them suitable for use in applications where extreme conditions are present. The tubes are made using high-quality raw materials and are subjected to rigorous testing to ensure their durability and strength. The tubes have a smooth surface finish, excellent chemical and mechanical properties, and are resistant to corrosion and oxidation. Additionally, they are highly reliable and require minimal maintenance, making them ideal for use in critical applications such as power plants, refineries, and petrochemical industries.

DIN 17175 10CrMo910 belongs to 2.25Cr-1Mo pearlitic heat-resistant steel, which has good physical and chemical properties and process properties, low heat treatment sensitivity, high heat strength and metallographic structure stability in long-term use at high temperature.

DIN 17175 10CrMo9-10 Equivalent Steel Grade

Grade	Standard	Country
STBA24	JIS G3462	Japan
P22	ASTM A335	USA
12Cr2MoG	GB/T 5310	China

Specification Parameters

Basic Information

Chemical Components

Grade	Chemical composition in % by mass
Grade	C	Si	Mn	P	S	Cr	Mo
10CrMo9-10	0.08 – 0.15	0.50 max	0.40 – 0.70	0.035 max	0.035 max	2.00 – 2.50	0.90 – 1.20

Mechanical Properties

Tensile Requirement

Tension and Impact Tests at Room Temperature

Grade	Tensile strength	Yield point for wall thickness in mm			Elongation at fracture (Lo = 5do)		Impact strength (DVM specimens)
	Tensile strength	≤16	＞16 ≤40	＞40 ≤60	longitudinal	transverse	transverse
	Mpa	Mpa, min			%, min		J, min
10CrMo9-10	450 – 600	280	280	270	20	18	34

Minimum 0.2 % Yield Limit at Elevated Temperatures

Grade	Wall thickness s	0.2 %-yield limit at
	Wall thickness s	200 ℃	250 ℃	300 ℃	350 ℃	400 ℃	450 ℃	500 ℃	550 ℃
	mm	MPa, min
10CrMo9-10	≤40	245	240	230	215	205	195	185	—
	40＜ s ≤60	235	230	220	205	195	185	175	—
	60＜ s ≤80	225	220	210	195	185	175	165	—

Ring Expanding Test

Grade	Expansion in ring expanding test (provisional data) for diameter ration d_i/d_a
	≥0.9	≥0.8 ＜0.9	≥0.7 ＜0.8	≥0.6 ＜0.7	≥0.5 ＜0.6	＜0.5
	%, min
10CrMo9-10	6	8	10	15	20	30

Dimensions Tolerance

Project	Standard		Size range		Tolerance
Outer diameter	DIN17175		Hot rolled steel pipe	OD ≤ 100mm	± 0.75% (Min. ± 0.5 mm)
				OD＞ 100~320 320mm	± 0.9%
			Cold drawn steel pipe OD ≤ 120mm		± 0.6% (Min ± 0.25 mm)
Wall thickness	DIN17175	OD ≤ 130mm	WT ≤ 2Sn		+15%~-10%
			WT ＞ 2Sn~4Sn		+12.5%~-10%
			WT ＞ 4Sn		± 9%
		130 ＜ OD ≤ 320mm	WT ≤ 0.05OD		+17.5%~-12.5%
			0.05OD ＜ WT ≤ 0.11OD		± 12.5%
			WT ＞ 0.11OD		± 10%

Service Support

DIN 17175 10CrMo9-10 Seamless Alloy Steel Pipe

DIN 17175 Tube Inspection & Test

Flattening Test—One flattening test shall be made on specimens from each end of one finished tube, not the one used for the flaring test, from each lot
Flaring Test—One flaring test shall be made on specimens from each end of one finished tube, not the one used for the flattening test, from each lot
Hydrostatic or Nondestructive Electric Test—Each tube shall be subjected to the nondestructive electric test or the hydrostatic test. The type of test to be used shall be at the option of the manufacturer, unless otherwise specified in the purchase order.

Test

Chemical composition verification test
hydrostatictest
Tensile test
Notched impact test
Yield strength test
Ring test
Nondestructive testing
