EN 10130 DC01 Steel

DC01 is a European brand, and the industry standard is EN10130. Its higher-level cold plates include DC03, DC04, DC05, and DC06. DC01 cold rolled steel, suitable for auto parts, household appliances, pipes, radiators, etc.

en 10130 dc01 dc01 en 10130 1.0330 steel 10130 dc01
Reference Price: $500
inquiry now
  • Introduction
  • Parameters
  • Service

DIN EN 10130 DC01 Steel (1.0330 Material)

DC01 steel (1.0330 material) is a European standard cold-rolled quality low-carbon steel flat product for cold forming. In BS and DIN EN 10130 standard, it contains 5 other steel grades: DC03 (1.0347), DC04 (1.0338), DC05 (1.0312), DC06 ( 1.0873) and DC07 (1.0898), the surface quality is divided into 2 types: DC01-A and DC01-B. In addition, this steel is also used under electrogalvanizing conditions. The designation of the steel is DC01+ZE (or 1.0330+ZE), and the standard is EN 10152.

Heat treatment status: A—annealed, S—annealed + flat, 8—(1/8) hard, 4—(1/4) hard, 2—(1/2) hard, 1—hard .

Drawing performance level: ZF – used for punching and drawing the most complex parts, HF – used for punching and drawing very complex parts, F – used for punching and drawing complex parts.

Surface processing status: D – pitted surface (roller processed by grinder and then shot peened), B – bright surface (roller finished by grinder).

Surface quality: FC—high-grade finished surface, FB—higher-grade finished surface.

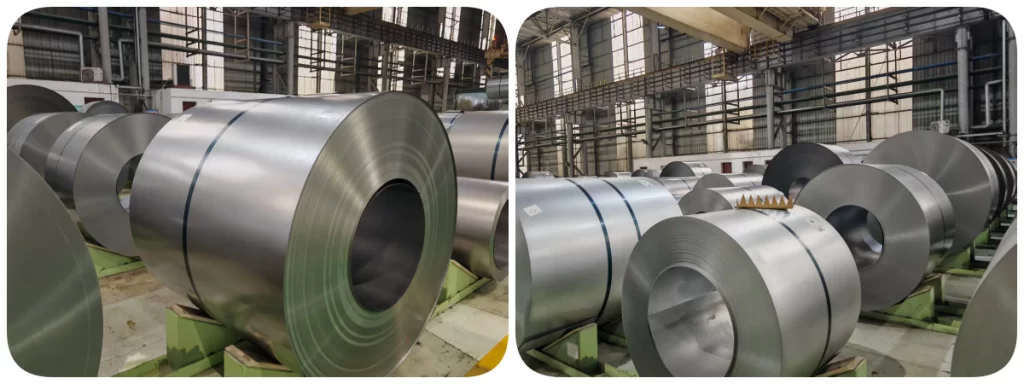

EN 10130-DC01 Cold Rolled Coil

C P S Mn Ti
≤0.12 ≤0.045 ≤0.100 ≤0.60 –
Yield Strength Mpa Tensile Strength Mpa Elongation(Thickness)
140-280 270-410 ≥28

We stock a range of cold reduced mild steel sheet from 0.50mm to 3.50mm or imperial 28 Gauge to 11 Gauge.

We can provide you with standard sheet sizes just in time for your next project in any of the above specifications. We can offer fast dispatch times whether you need large quantities & small quantities.

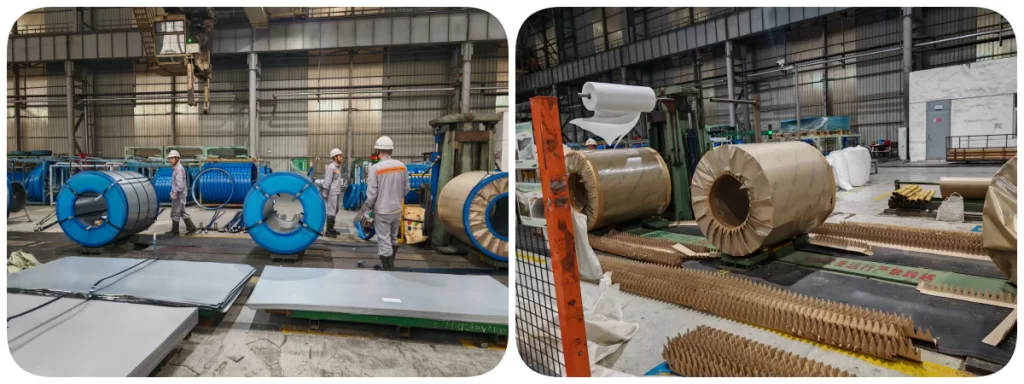

Packaging and shipping

Company Profile

GNEE STEEL company is located in Anyang City, Henan Province. Mainly engaged in cold rolled steel. The GNEE STEEL team has focused on the steel industry for 16 years. The company has established long-term and close cooperative relations with well-known domestic steel companies. At the same time, the company’s annual spot reserves exceed 100,000 tons, which can guarantee a short delivery time.With high-quality products, low prices and excellent services, it is highly praised by customers.

The GNEE STEEL service team is online 24 hours a day to provide you with professional and high-quality services.

GNEE STEEL also adheres to the win-win concept and is customer-centered, looking forward to becoming a high-quality enterprise that you can trust.

Specification Parameters
Basic Information

Chemical Composition

DC01 steel chemical composition is listed in the following table based on ladle analysis.

Country (Region) Standard Chemical Composition (ladle analysis), %, ≤ Surface quality Deoxidation Classification
Steel name (Steel number) C Mn P S
European Union EN 10130 DC01 (1.0330) 0.12 0,60 0,045 0,045 A, B Manufacturer’s discretion Non-alloy quality steel
EN 10152 DC01+ZE (1.0330+ZE) A, B
EN 10139 DC01-C390, C340, C440, C490, C590, C690 –

Notes:

  • EN 10130 – Cold rolled low carbon steel flat products;
  • EN 10152 – Electrolytically zinc coated cold rolled steel flat products.
  • EN 10139 – Cold rolled uncoated low carbon steel narrow strip.

DC01 Steel Equivalent Material

Material 1.0330, DC01 steel equivalent to ASTM, ISO, European (German DIN, British BSI, France NF), Japanese JIS and Chinese GB standard (for reference).

Note: DIN 1623 has been replaced by DIN EN 10130, and the designation ST12 has been replaced by DC01.

DC01 Steel Equivalent Material
European Union Germany US China Japan ISO India
Standard Designation (Steel number) Standard Designation (Material number) Standard Steel Standard Steel Bao Steel Grade Standard Steel Standard Steel Standard Steel
EN 10130;
EN 10152		 DC01 (1.0330) DIN 1623-1 ST12 (1.0330) ASTM A1008/A1008M CS Type C GBT 5213 DC01 Q/BQB 403 DC01 JIS G3141 SPCC ISO 3574 CR1

Related post: S235 steel, S235JR (1.0038), S235J0 (1.0114), St37 (1.0037)
