EN 10216-2 16Mo3 Alloy Seamless Steel Tube

Standard: EN10216-2

Material: 16Mo3

OD: 10.2-711 mm, WT: 1.6-100 mm, L: 5.8 m, 6 m, 11.8 m, or random.

High Technical method:Normalizing, Quenching and Tempering, Normalizing and Tempering.

Application: used in the power plant boiler tubes, etc

Seamless steel tubes for heat exchangers EN 10216-2 16Mo3 16Mo3 Alloy Steel Tubes EN 10216-2 16Mo3 Seamless Carbon Steel Pipe En10216-2 16mo3 boiler tube

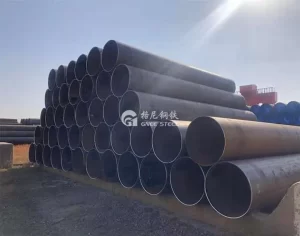

EN 10216-2 16Mo3 Seamless alloy boiler tubeEN 10216-2 16Mo3 Alloy Seamless Steel Tube Manufacturer

EN 10216-2 16Mo3 Seamless Steel Tube is produced in accordance with en10216-2 standard. 16mo3 steel is widely used in high temperature alloy steel for boiler industry in Europe, which has high strength, good comprehensive performance, corrosion resistance, wear resistance, low temperature resistance, good cutting performance, welding performance, etc.



EN 10216-2 16Mo3 Equivalent

BS DIN GB
BS EN 10216-2 16Mo3 DIN 17175 15Mo3 GB/T 5310 15MoG

Dimensions

EN 10216-2 16Mo3 dimensions generally cover the following dimensions:

  • Outside diameter: 10.2 mm – 711 mm;
  • Wall thickness: 1.6 mm – 100 mm;

EN 10216-2 also provides preferred thicknesses for three series, covering common and non-standard sizes.

Specification Parameters
Basic Information

Chemical composition

C, % Si, % Mn, % P, % S, % Mo, %
0.12-0.20 0.35 max 0.40-0.90 0.025 max 0.020 max 0.25-0.35

Mechanical Properties

Tensile Strength , MPa Yield Strength, MPa Elongation, %
450-600 280 min 22 min

Outside Diameter & Tolerance

Hot rolled Outside Diameter, mm Tolerance
OD≤219.1 ±1% or ±0.5mm
OD>219.1 ±1% or ±0.5mm
Cold Drawn Outside Diameter, mm Tolerance
OD≤114 ±0.5% or ±0.3mm

Wall thickness & Tolerance

Hot rolled Outside Diameter, mm WT/OD Tolerance
OD≤219.1 WT/OD≤2.5% ±12.5% or ±0.4mm
2.5%＜WT/OD≤5%
5%＜WT/OD≤10%
WT/OD>10%
OD>219.1 WT/OD≤2.5% ±20%
2.5%＜WT/OD≤5% ±15%
5%＜WT/OD≤10% ±12.5%
WT/OD>10% ±10%
Cold Drawn Outside Diameter, mm – Tolerance
OD≤114 – ±10% or ±0.2mm
