Home > products> EN10155 S355J2WP Steel Plate

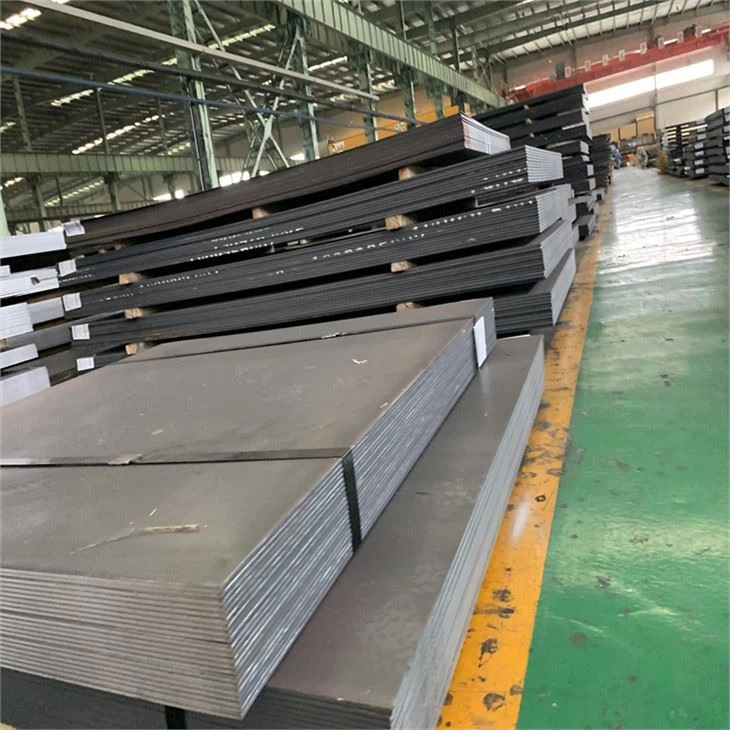

EN10155 S355J2WP Steel Plate image
  • EN10155 S355J2WP Steel Plate image 1
  • EN10155 S355J2WP Steel Plate image 2
  • EN10155 S355J2WP Steel Plate image 3
  • EN10155 S355J2WP Steel Plate image 4
  • EN10155 S355J2WP Steel Plate image 5
  • EN10155 S355J2WP Steel Plate image 6

EN10155 S355J2WP Steel Plate

Product name: EN 10155 S355K2G1W steel plate

Standard: AiSi, ASTM, bs, DIN, GB, JIS

Special Use: Corrosion-resistant steel plate

Width: 0.6-3 m Length: 1-12 m, 1-12m or as required

Tolerance: ±1% Type: Hot Rolled Steel Sheet

Processing Service: Bending, Welding, Decoiling, Cutting, Punching

EN10155 S355J2WP Boiler steel plate EN10155 S355J2WP Pressure Vessel Steel plate EN10155 S355J2WP Storage Tanks Steel plate EN10155 S355J2WP Heat Exchanger Steel Plate

What is EN10155 S355J2WP steel?

EN10155 S355J2WP steel is a hot rolled product of structural steels in technical delivery conditions with improved atmospheric corrosion resistance.

S355J2WP Standard: S335J2WP steel plate is according to EN10025-5

S355J2WP Application: S335J2WP—the steels are especially intended for use in heavily loaded parts of welded structures such as bridges, flood gates, storage tanks, water supply tanks, etc., for service at ambient and low temperatures.



Specification

item value
Product name EN 10155 S355K2G1W steel plate
Standard AiSi, ASTM, bs, DIN, GB, JIS
Place of Origin China
Brand Name Gnee
Type Steel Plate
Technique Hot Rolled
Special Use Corrosion resistant steel plate
Width 0.6-3m
Length 1-12m, 1-12m or as required
Tolerance ±1%
Type Hot Rolled Steel Sheet
Processing Service Bending, Welding, Decoiling, Cutting, Punching
Delivery Time 7 Days



Specification Parameters
Basic Information

EN10155-1993 S355K2G1W Chemical Composition(%) and Mechanical Properties:

C max Si max Mn P S max N max Cr Cu
0.16 0.50 0.50-1.50 0.035 0.035 – 0.40-0.80 0.25-0.55
Yield Strength (MPa) min. Tensile Strength (MPa) Elongation % min.
Thickness(mm) Thickness(mm) Thickness(mm)
t≤16 16<t≤25.4 t<3 3≤t≤25.4 1.5<t≤2.0 2.0<t≤2.5 2.5<t<t3.0 3≤t≤25.4
355 345 510-680 490-630 16 17 18 22



Service Support
EN10155 S355J2WP Steel Plate

Available Services Of 1.8961 Steel Plate

  • Polish
  • Pickling
  • Forging
  • Bending
  • Cladding
  • Annealed
  • Cutting
  • Minor Fabrication
  • Heat Treatment
  • Rolling

Packaging

  • Industrial packing techniques
  • Big rolls with spools
  • Bundles with plastic wrapping
  • Wooden boxes/ pallets/ crates

Inspection Plan

  • Reduction of Area Measurement.
  • Ultrasonic Examination.
  • Single Heat Bundles
  • Tensile Strength (Maximum)
  • Drop-weight Test
  • Simulated Post-weld Heat Treatment
  • Product Analysis
  • Charpy V-notch Impact Test
