Core Functions & Product Advantages

• Precise Power Engagement and Disengagement：As the core meshing component of the final drive system, it precisely engages with the active dog clutch to realize reliable transmission and complete disengagement of power, with flexible switching and no jamming. It ensures stable power transmission when the tractor starts, shifts gears and stops, avoiding power interruption or jamming, which meets the technical requirements of reliable engagement and complete disengagement of dog clutch.
• Low-Speed High-Torque Transmission for Heavy-Duty Work：Optimized dog clutch tooth profile design with multi-tooth meshing structure, strong bearing capacity, which can stably transmit the low-speed and high torque of the final drive. It perfectly matches the heavy-duty operation needs of 50-70HP tractors such as rotary tillage, harrowing, ditching and climbing, and can effectively cope with alternating load impact under complex field conditions, with large and stable torque transmission.
• High Strength & Wear Resistance for Harsh Field Conditions：Made of high-quality alloy structural steel 20CrMnTi/40Cr, treated by carburizing and quenching, the tooth surface hardness reaches HRC56-62, with excellent core toughness and surface roughness Ra not more than 3.2μm. It has strong wear resistance and impact resistance, and can adapt to harsh field environments such as mud, dust, high and low temperature. It eliminates faults such as tooth surface wear, tooth chipping and deformation, extends service life and reduces maintenance costs.
• High-Precision Matching & Easy Installation：Produced in strict accordance with OEM specifications, the number of teeth, tooth profile and installation size of the dog clutch are 1:1 matched with the original vehicle final drive system, with no jamming. No secondary modification is required, it can directly replace the original parts, with strong interchangeability and convenient installation. It is compatible with most 50-70HP wheeled tractor models, balancing economy and practicality.
• Compact Structure for Small and Medium Horsepower Models：Adopting compact structure design, small in size and light in weight, it perfectly fits the limited installation space of 50-70HP tractor gearboxes without occupying additional space. At the same time, it simplifies the transmission structure, reduces the overall transmission loss of the machine, adapts to the flexible operation characteristics of small and medium horsepower tractors, and balances operation efficiency and operational convenience.

Product Structure & Manufacturing Process

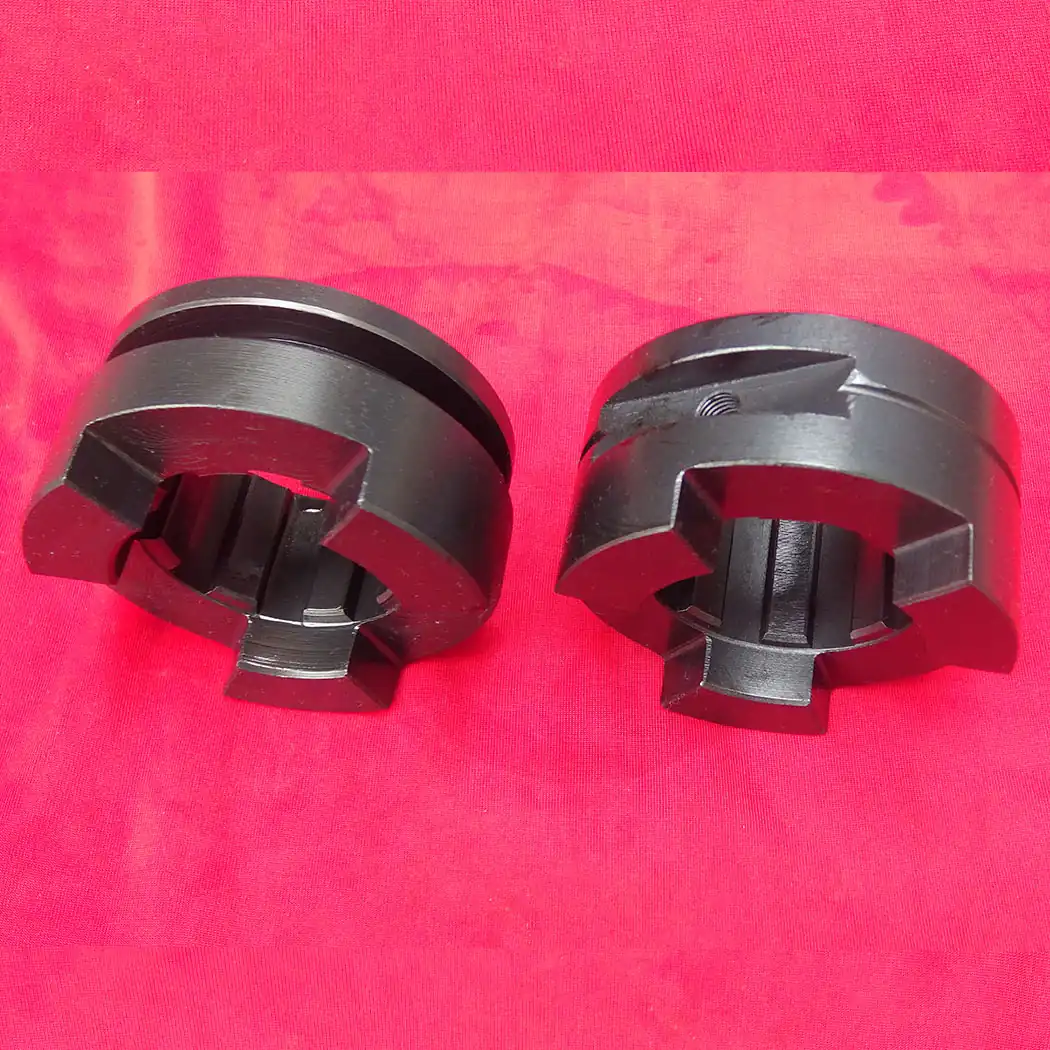

• Main Structure Type：Standard integrated dog clutch (suitable for most 50-70HP models), the dog clutch and mounting base are integrally processed, with firm structure and no splicing hidden dangers; split dog clutch is optional, which can be replaced separately after wear, with lower maintenance cost; the tooth profile of the dog clutch adopts involute design with high meshing accuracy, suitable for the power transmission needs of final drive gears, and some models can adapt to the dog clutch combination control needs in the steering transfer case.
• Tooth Profile Design：Adopting national standard involute tooth profile, the tooth profile is optimized by modification to reduce meshing impact, lower operation noise, and improve meshing stability and bearing capacity. It is suitable for low-speed and heavy-duty transmission needs, ensuring uniform force when multiple teeth mesh at the same time, in line with the design specifications of dog clutch.
• Core Manufacturing Process：High-quality round steel cutting → Forging forming → Normalizing treatment → Precision CNC machining (turning, milling, gear shaping) → Carburizing and quenching → Precision grinding → Magnetic particle inspection → Blackening/phosphating anti-rust treatment. Each process strictly follows the production standards of agricultural machinery parts, and all products pass multiple tests such as hardness and meshing accuracy before leaving the factory to ensure qualified product quality.
• Accuracy Grade：ISO Grade 7-9, in line with the industry accuracy standard of agricultural machinery transmission parts, with precisely controlled meshing clearance, stable transmission and no obvious noise. The dog clutch slides flexibly on the transmission shaft, meeting the power transmission requirements of the tractor final drive system, and can still meet the use requirements after 2.5×10⁴ durability tests.

Application Fields & Working Scenarios

1. Core Application Field

2. Core Working Scenarios

3. Extended Application Fields
