IM LS9 SUV 2026

The IM LS9, a large SUV from IM Motors , will commence pre-sales on November 4. Positioned as a large SUV, it features a six-seat layout and debuts innovative technologies including 4D mechanical massage seats, an air purification system, a luxury outdoor suite, and a B&O sound system. Additionally, it will be equipped with the high-performance “Constellation” super range extender and the next-generation Lingxi digital chassis. The vehicle is scheduled for an official launch in the fourth quarter of this year.

Reference Price: $47,306.17-$51,522.34
inquiry now

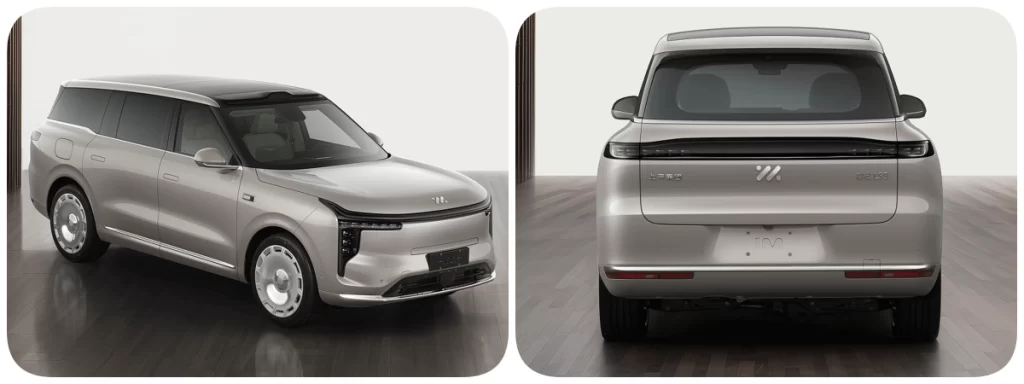

IM LS9 Exterior

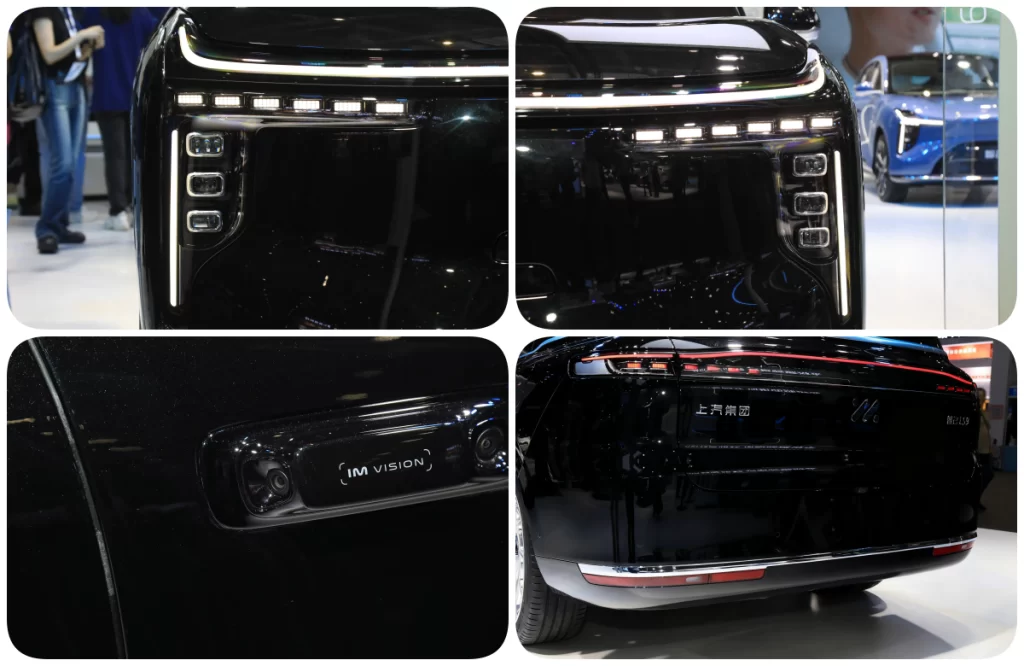

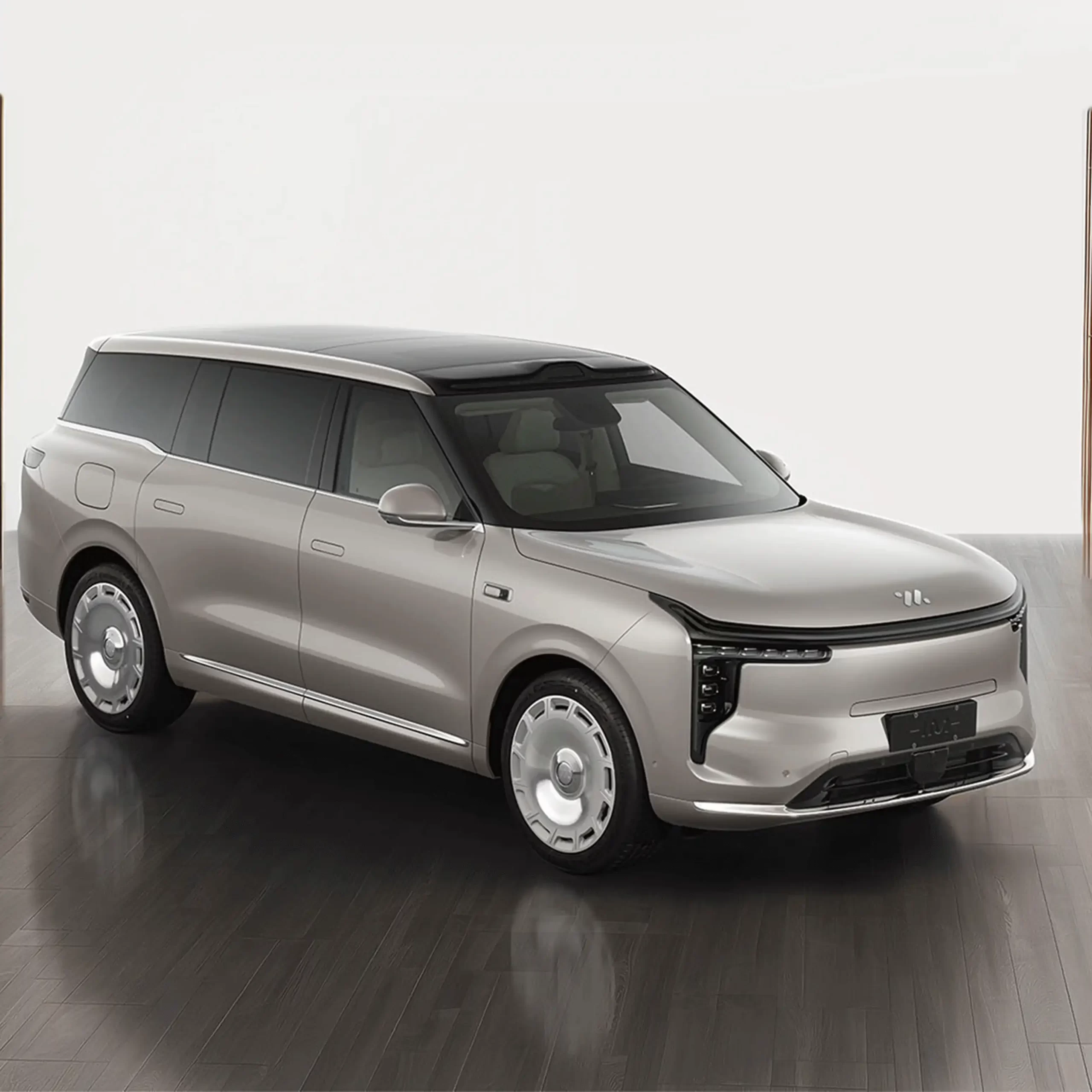

Exterior-wise, the front fascia adopts a new design language. The star-ring-style continuous light strip, paired with T-shaped light clusters on both sides, creates a futuristic visual effect when illuminated. The grille features a closed design, with air vents positioned below the grille and on the front bumper, likely equipped with active opening and closing functionality.

IM LS9 price

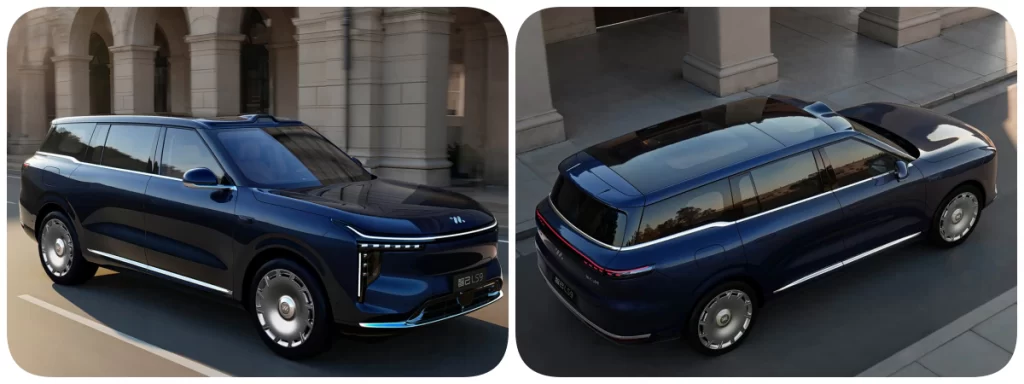

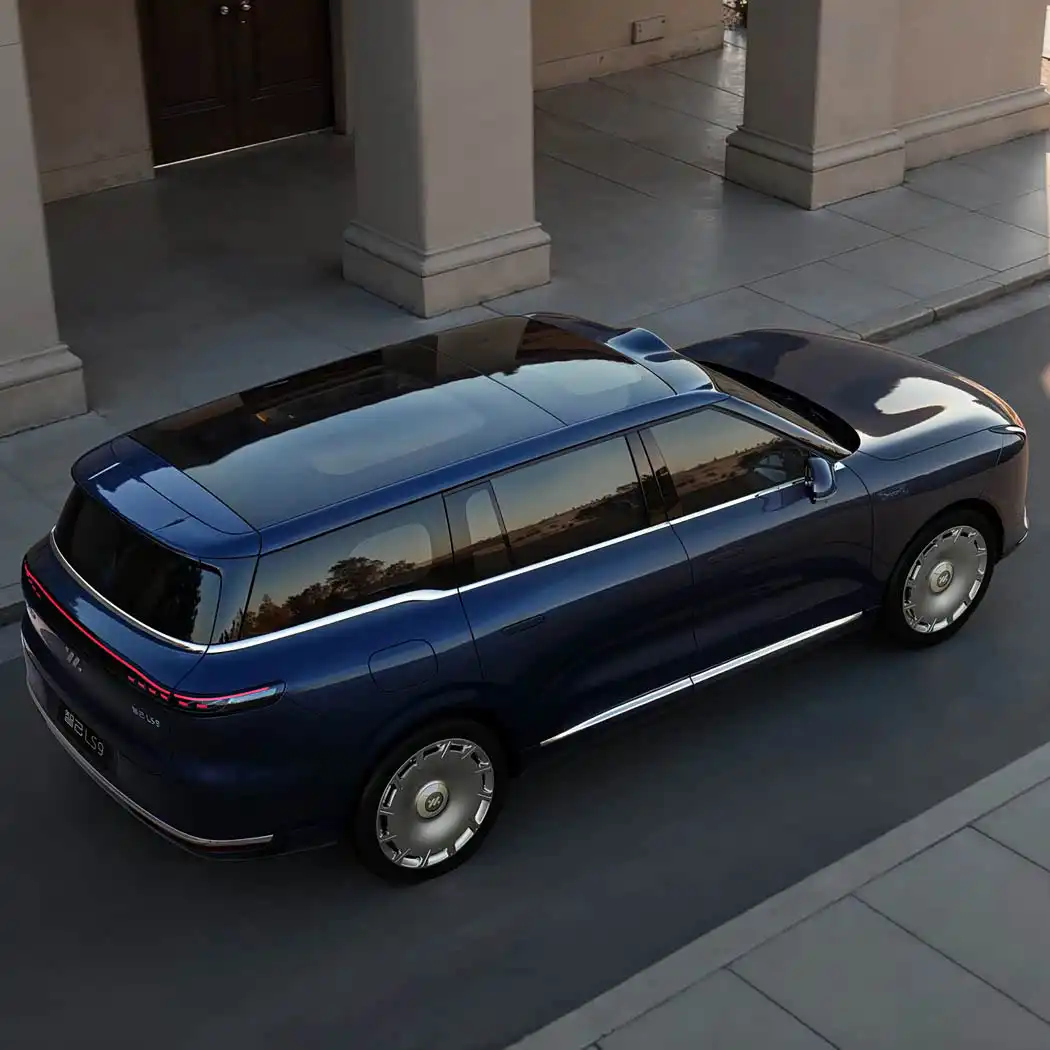

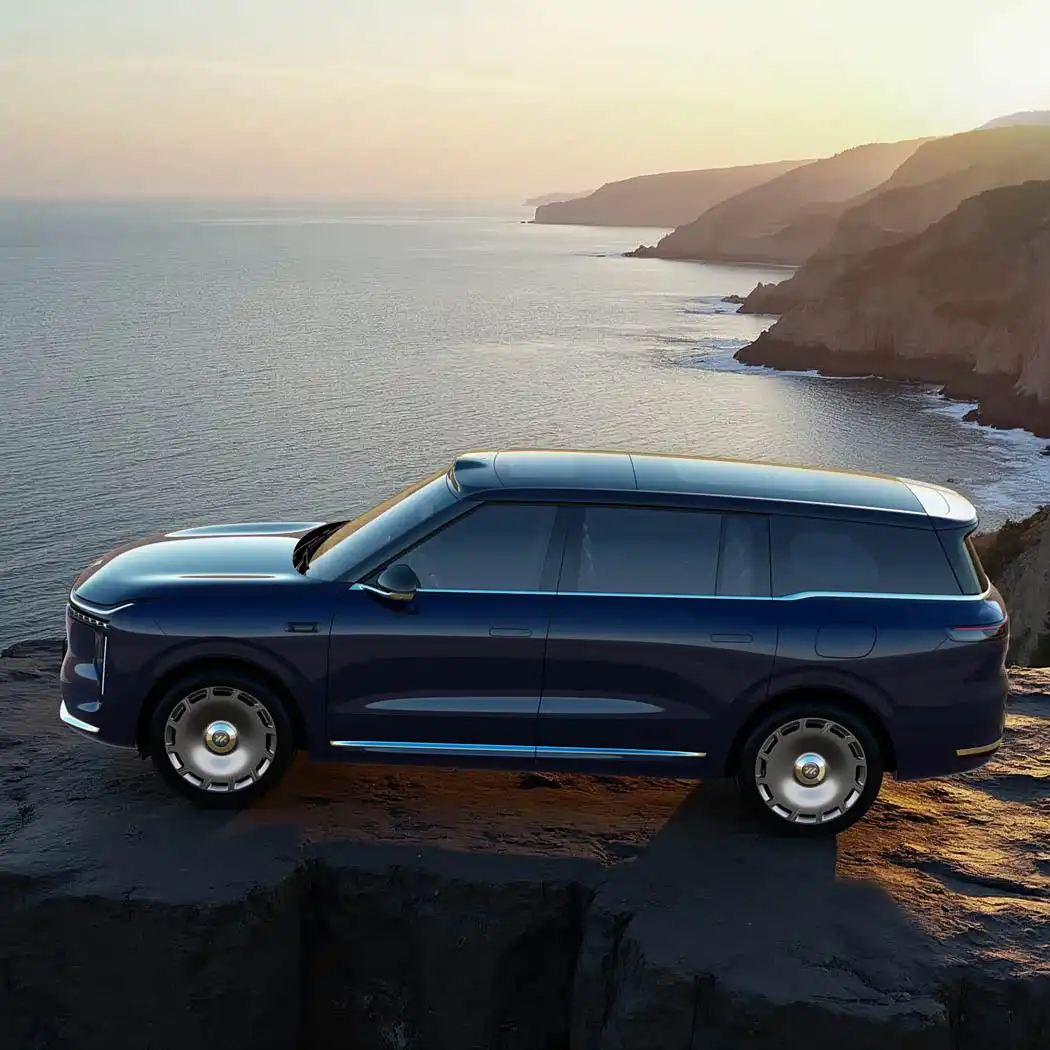

Moving to the profile, the most striking feature is the large, disc-shaped wheels, which are expected to incorporate self-centering hubcaps. Details include hidden door handles, a silver chrome trim strip below the windows creating a wraparound visual effect, and a segmented sunroof design. Dimensions for the IM LS9 measure 5,279 mm in length, 2,000 mm in width, and 1,806 mm in height, with a wheelbase of 3,160 mm.

IM ls9 interior

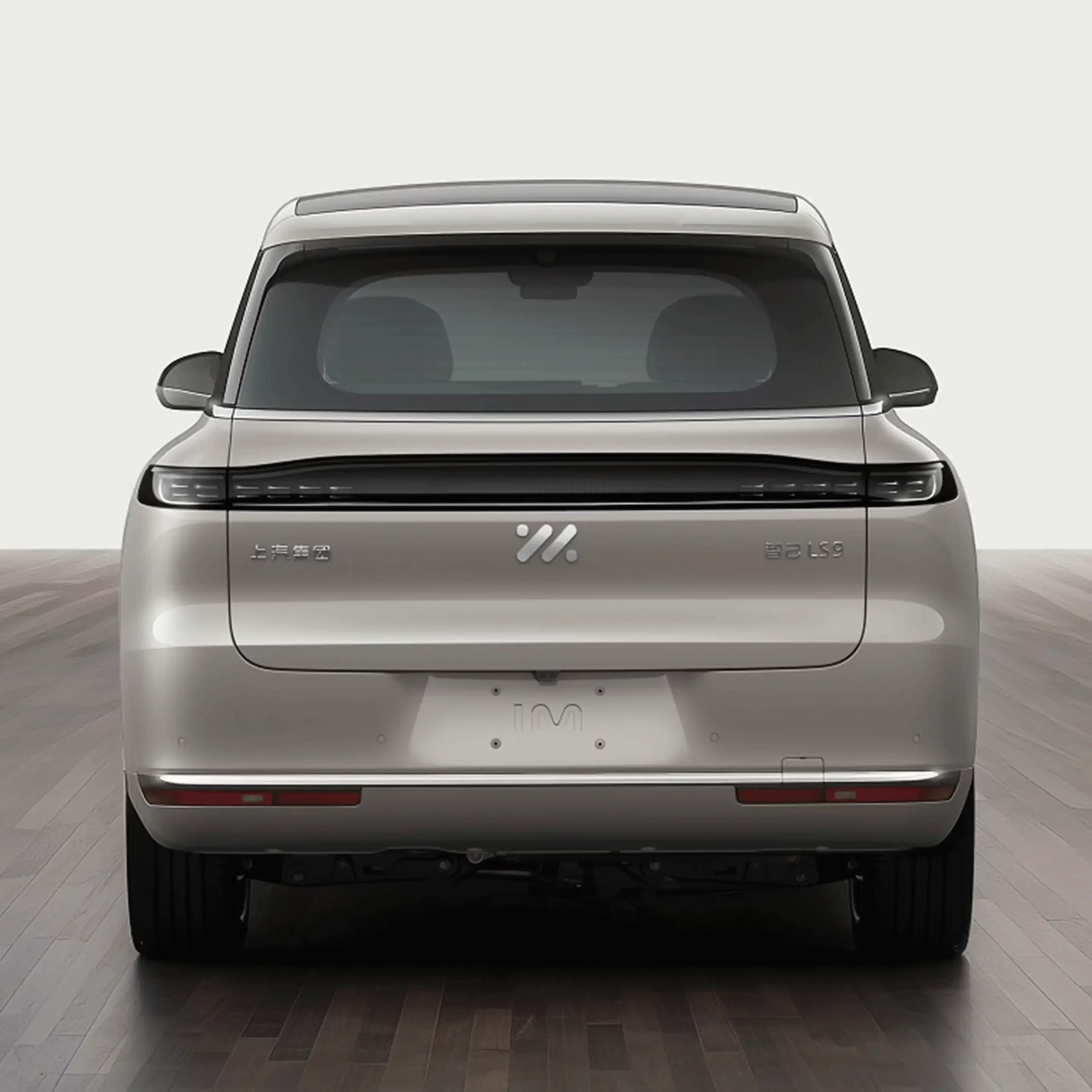

The rear end exhibits strong layered styling. On this large SUV body, the full-width taillights incorporate an upward-sweeping design, maintaining the brand’s signature while adding a touch of liveliness. The rear window also features chrome trim that connects seamlessly with the side window trim.

IM Motors

IM LS9 Specs

The cabin adopts a six-seat layout and debuts an innovative 4D mechanical massage seat system supporting multiple massage techniques and kneading functions. Additional features include a B&O sound system, a cabin air purification system, and a luxury outdoor gear package.

Power

Power comes from the high-performance “Constellation” super range system, combining a 1.5T engine with an electric motor and a 66 kWh battery pack. This setup delivers over 450 kilometers of pure electric range and a combined range exceeding 1,500 kilometers. The vehicle also incorporates the next-generation Lingxi digital chassis.

More IM Motors models are coming soon…

2026 All-New IM SL6

IM L6 2025

Specification Parameters
Basic Information
IM LS9 2026 Model Year 52 Ultra IM LS9 2026 Model Year 66 Ultra
Manufacturer IM Motors IM Motors
Vehicle Class Large SUV Large SUV
Energy Type Extended-Range Extended-Range
Emission Standard China VI China VI
Launch Time
Vehicle Warranty 5 years or 150,000km 5 years or 150,000km
LengthWidthHeight (mm) 5279 2000 1806 5279 2000 1806
Wheelbase (mm) 3160 3160
Front Track (mm) 1715 1715
Rear Track (mm) 1726 1726
Approach Angle (°) 19 19
Departure Angle (°) 21 21
Minimum Turning Radius (m) 4.95 4.95
Body Structure 5-door 6-seat SUV 5-door 6-seat SUV
Door Opening Type Swing Door Swing Door
Number of Doors 5 5
Number of Seats 6 6
Fuel Tank Capacity (L) 60 60
Trunk Volume (L) 372-1030 372-1030
Drag Coefficient (Cd)
Curb Weight (kg) 2670 2695
Maximum Gross Weight (kg) 3205 3205
Maximum Towing Weight (kg) 1500 1500
Engine Model 15FNE 15FNE
Displacement (L) 1.5 1.5
Intake Type Turbocharged Turbocharged
Cylinder Arrangement L L
Number of Cylinders 4 4
Valves per Cylinder 4 4
Valve Train DOHC DOHC
Maximum Horsepower (Ps) 155 155
Maximum Power (kW) 114 114
Maximum Net Power (kW) 112 112
Fuel Grade 92# 92#
Fuel Supply Mode Direct Injection Direct Injection
Cylinder Head/Block Material Aluminum Alloy/Aluminum Alloy Aluminum Alloy/Aluminum Alloy
Rear Motor Brand United Electronics United Electronics
Front Motor Model TZ180XY02A
Rear Motor Model TZ210XS1141 TZ210XS1141
Motor Type Permanent Magnet/Synchronous Permanent Magnet/Synchronous
Total Motor Power (kW) 380 390
Total Motor Horsepower (Ps) 517 530
Total Motor Torque (N·m) 670
Front Motor Max Power (kW) 150 160
Front Motor Max Torque (N·m) 240
Rear Motor Max Power (kW) 230 230
Rear Motor Max Torque (N·m) 430 430
Number of Drive Motors Dual Motors Dual Motors
Motor Layout Front+Rear Front+Rear
EPT System Warranty 8 years or 240,000km 8 years or 240,000km
Battery Type LFP Battery NCM Battery
Cell Brand CATL SAIC CATL SAIC
Battery Cooling Method Liquid Cooling Liquid Cooling
WLTC Pure Electric Range (km) 255 318
CLTC Pure Electric Range (km) 402
CLTC Combined Range (km) 1508
Battery Capacity (kWh) 52 66
Energy Consumption per 100km (kWh/100km) 21.3 21.8
Battery Warranty Lifetime warranty for first owner (non-commercial) Lifetime warranty for first owner (non-commercial)
Fast Charging/High-Voltage Fast Charging Supported/Supported Supported/Supported
High-Voltage Platform (V) 800 800
Charging Port Location Slow/Fast: Left Rear of Vehicle Slow/Fast: Left Rear of Vehicle
V2L Power (kW) 6 6
Transmission Type Fixed Gear Ratio Transmission (Single-speed) Fixed Gear Ratio Transmission (Single-speed)
Drive Mode Dual-motor 4WD Dual-motor 4WD
4WD Type Electric 4WD Electric 4WD
Front Suspension Type Double Wishbone Independent Suspension Double Wishbone Independent Suspension
Rear Suspension Type Multi-link Independent Suspension Multi-link Independent Suspension
Steering Assist Type Electric Power Assist Electric Power Assist
Body Structure Load-bearing Load-bearing
Front/Rear Brake Type Ventilated Disc/Ventilated Disc Ventilated Disc/Ventilated Disc
Parking Brake Type Electronic Parking Brake Electronic Parking Brake
Tire Specification 255/55 R20 (265 series optional) 255/55 R20 (265 series optional)
Spare Tire Specification
Airbag Configuration Driver/Passenger + Front/Rear Side + Front/Rear Curtain + Front Center Driver/Passenger + Front/Rear Side + Front/Rear Curtain + Front Center
Active Safety Systems ABS+EBD+Brake Assist+Traction Control+ESP ABS+EBD+Brake Assist+Traction Control+ESP
Auxiliary Safety Functions Tire Pressure Display + Lane Departure Warning + Autonomous Emergency Braking + Fatigue Reminder (all standard) Tire Pressure Display + Lane Departure Warning + Autonomous Emergency Braking + Fatigue Reminder (all standard)
