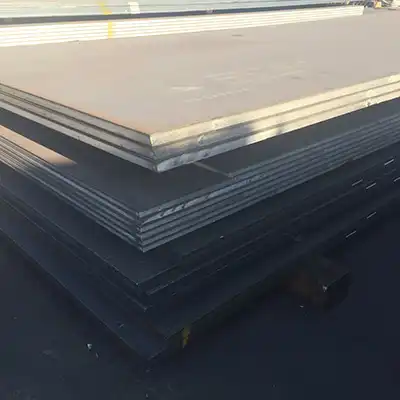

JIS G3114 SMA490AP Steel Plate image
  • JIS G3114 SMA490AP Steel Plate image 1
  • JIS G3114 SMA490AP Steel Plate image 2
  • JIS G3114 SMA490AP Steel Plate image 3
  • JIS G3114 SMA490AP Steel Plate image 4
  • JIS G3114 SMA490AP Steel Plate image 5
  • JIS G3114 SMA490AP Steel Plate image 6

JIS G3114 SMA490AP Steel Plate

Steel Standard:JIS G3114

Rolling Type:Corten steel,Weathering steel plate

Thickness:2mm-300mm

Width:1000mm-4200mm

Length:3000mm-18000mm

Heat Treatment:AR,CR.TMCP,Normalized

What is JIS G3114 SMA490AP steel?

JIS G3114 SMA490AP steel is a weather resistant steel created by alloying copper, chromium and nickel. SMA490AP grade steel has added phosphorous which makes the material best suited for gas flue applications and for aesthetic facias. SMA490AP steel plate is intended for welded, bolted or riveted construction of bridges and other structures where high strength and enhanced corrosion resistance are required.

SMA490AP steel plate application:

SMA490AP steel plate is widely used in vehicle, bridge, tower, container and so on.



SMA490AP steel delivery condition: hot rolled, Cold rolled ,AR/CR/N/TMCP/T/QT as the customer request.

Specification Parameters
Basic Information

SMA490AP Chemical composition Max % of the Product analysis of grade

C Si Mn P S Cu Cr Ni
0.18 0.55 1.40 0.035 0.035 0.20-0.35 0.30-0.55

SMA490AP Yield strength

Nominal thickness (mm) to 16 16-40 40-75 75-100 100-160 160-200
ReH – Minimum yield strength (MPa) 365 355 335 325 305 295



SMA490AP Tensile Strength

Rm -Tensile strength (MPa) 490-610

SMA490AP Impact Test degree and energy

Temperature ℃ Min Energy Nominal thickness
Notch impact test. Min. absorbed energy 0
