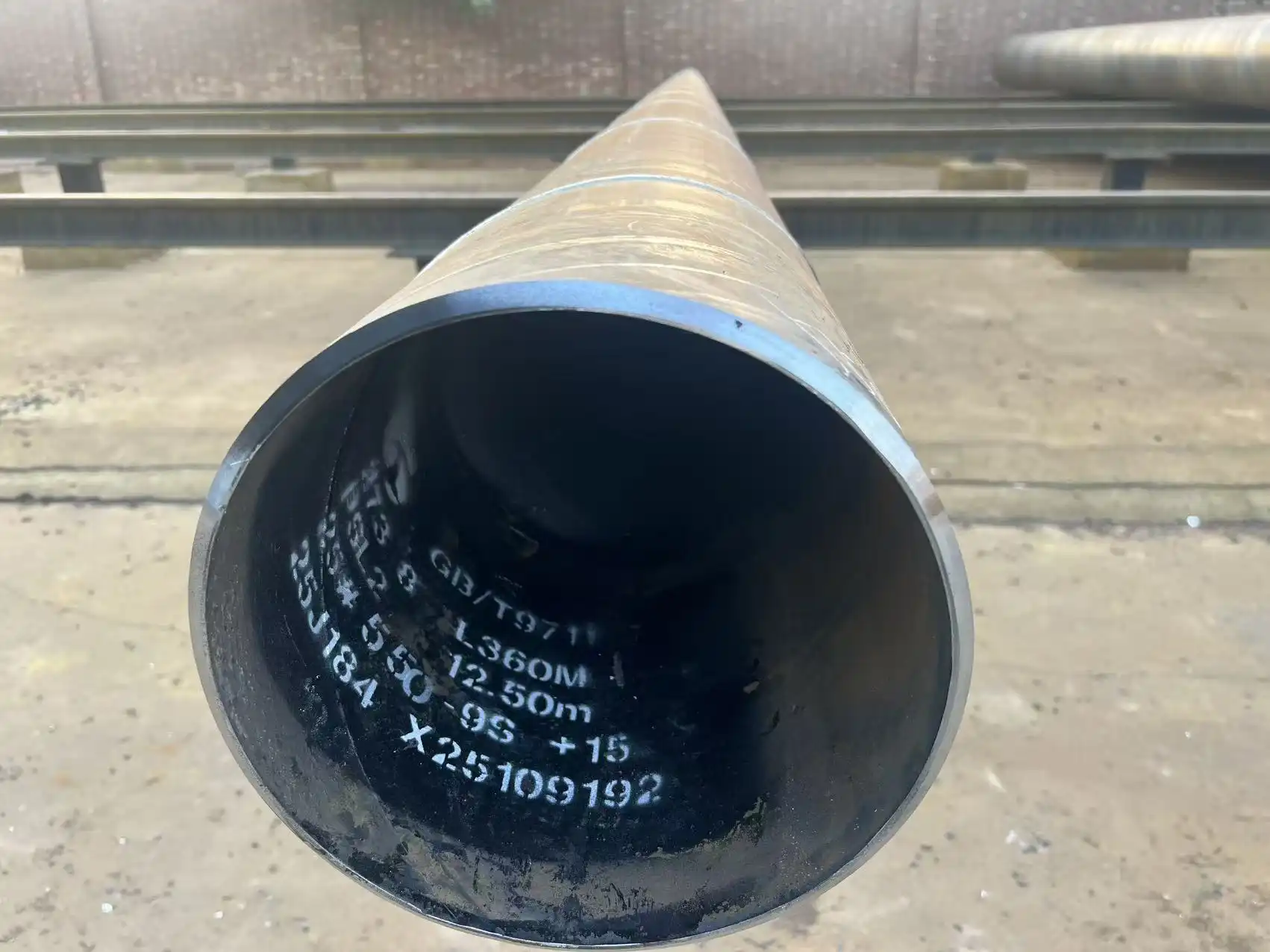

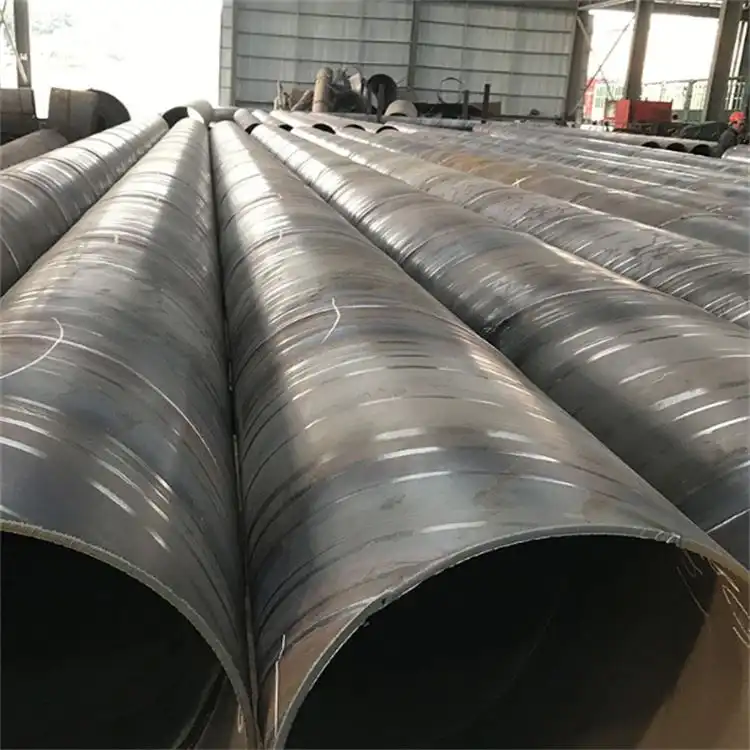

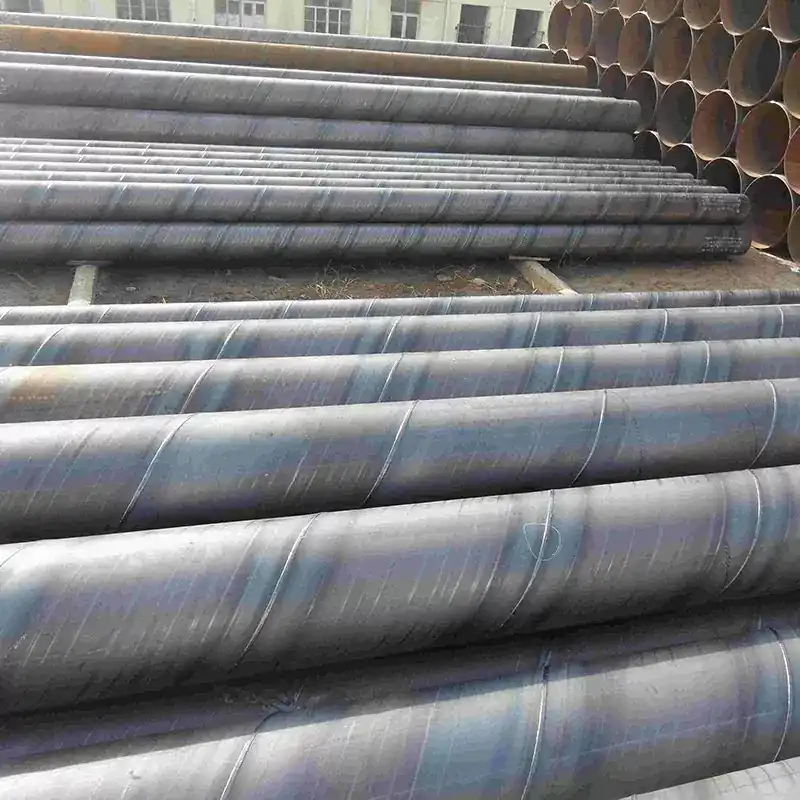

Large Diameter Spiral Steel Pipe Q235B

Wall Thickness: 1.7mm-36mm

OD:10.3mm-609.6mm

Length: 5000mm-12000mm

Packing: Standard export packing

Terms of Delivery: FOB/CNF/CIF/CFR or etc.

Payment terms: T/T, L/C

Others as the customers requirements.

SSAW Steel Pipe Welded Spiral SSAW Steel Pipe SSAW Carbon Steel Pipe Spiral Steel Pipe SSAW Carbon Steel Pipe SAWH Pipe Welded Spiral Pipes LSAW Steel Pipe

Introduction
Parameters
Service

Large Diameter Spiral Steel Pipe Q235B For Fluid Transmission

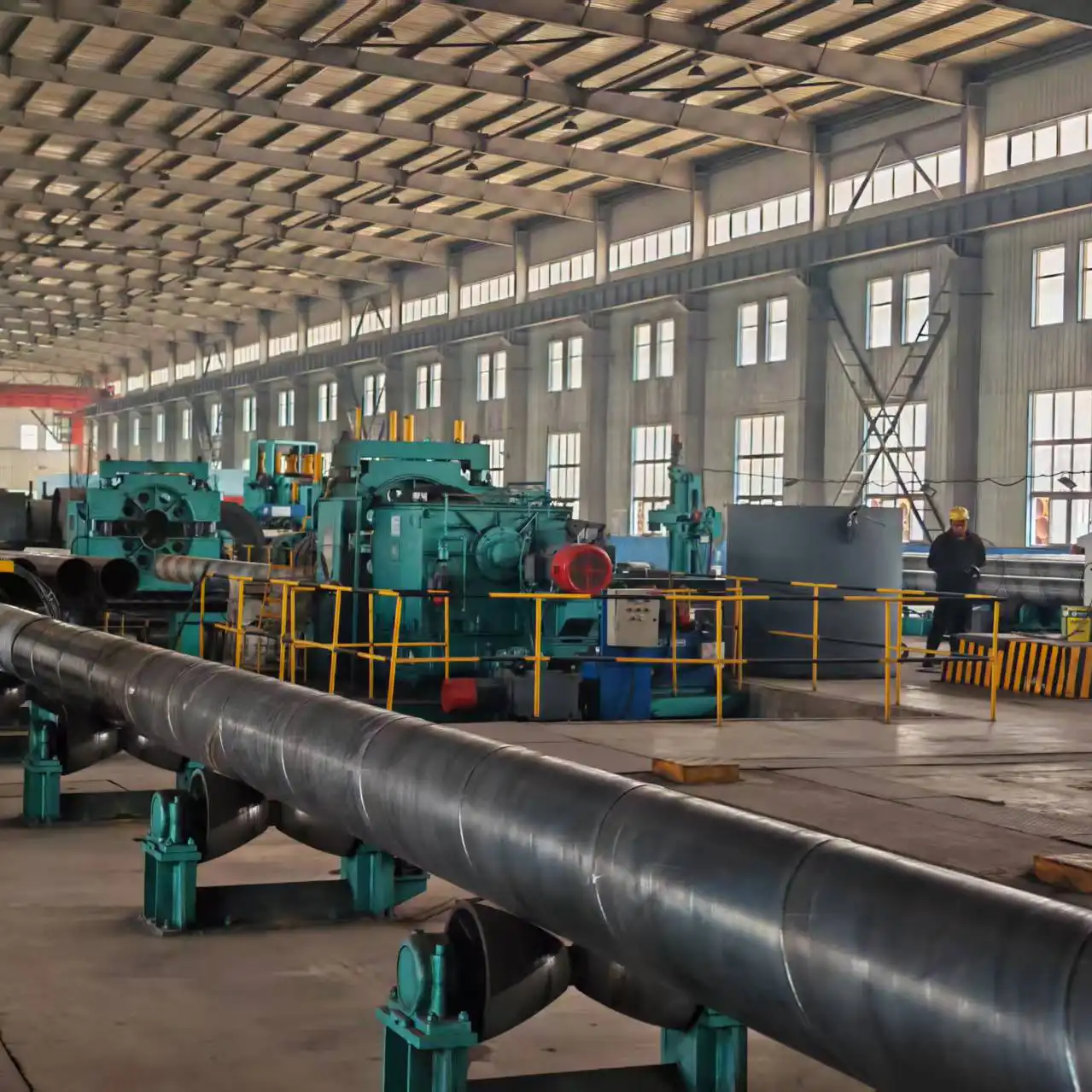

Q235B spiral pipe is a commonly used raw material in spiral pipes.It is a spiral seam steel pipe welded with strip steel coil as the raw material and active double wire double-sided submerged arc welding. The main technical characteristics of the spiral steel pipe: During the forming process, the steel plate is uniformly deformed, the residual stress is small, and the surface does not scratch. Can meet the user’s more requirements in the spiral steel pipe standard.

Specification

roduct Name	Spiral-welded steel pipe
Standard	API 5L psl1/psl2, ISO9000, DIN2240, ASTM A500, A501, A53, EN10219/EN10210, JIS G3466, GB/T6728, GB/T3094, GB/T3091, GB/T9711
Sizes	219 mm to 2032mm
Thickness	4 mm to 60mm
Length	0.5-50M
NDT Test	UT, RT, hydrostatic,
Beveled Edges	30DEG, (-0, +5)
Length	3M max. 24 meters, or as required
Surface treatment	Black painted/galvanized, etc.
Hot Expanded Ends	Available
Packing	Loosed PCS/nylon rope(for the coating pipes)
Transportation	by 20/40 ft containers or by bulk vessels as per condition
Pile shoes	OEM/ODM (for piling)
Third-party inspection	SGS/BV/JIS/ISO/API/GB/BC1/EPD&PHD
Payment Term	TT, LC
Application	water/fluid transportation, piling, structural supports, dredging etc.

Specification Parameters

Basic Information

Steel pipe size for your reference

ID	OD	Inch	Wall thickness	Theorectical Weight	Pieces	Executive standard
DN15	21.25	1/2	2.75	1.26	217	GB/T3091-2008
DN20	26.75	3/4	2.75	1.63	169	GB/T3091-2008
DN25	33.3	1	3.25	2.42	127	GB/T3091-2008
DN32	42.25	1.25	3.25	3.13	91	GB/T3091-2008
DN40	48	1.5	3.5	3.84	91	GB/T3091-2008
DN50	60	2	3.5	4.88	61	GB/T3091-2008
DN65	75.5	2.5	3.75	6.64	37	GB/T3091-2008
DN80	88.5	3”	4	8.34	37	GB/T3091-2008
DN100	114	4”	4	10.85	19	GB/T3091-2008
DN125	140	5”	4.5	15.04	19	GB/T3091-2008
DN150	165	6”	4.5	17.81	19	GB/T3091-2008
DN200	219	8”	6	31.52	7	GB/T3091-2008

Q235B Carbon Steel Pipe Composition

Grade	Chemical Composition
	C	Mn	Si	S	P
	C	Mn	Si	S	P
Q195	0.06-0.12	0.25-0.50	≤0.30	≤0.045	≤0.05
Q215	0.09-0.15	0.25-0.55	≤0.30	≤0.05	≤0.045
Q235	0.12-0.20	0.30-0.67	≤0.30	≤0.045	≤0.04
Q345	≤0.20	1.00-1.60	≤0.55	≤0.04	≤0.04

Steel Grade Q195 Pipe Mechanical Properties

(N/mm2 = Mpa)

Grade	Yield Strength	Tensile Strength
Q195	195	315-430
Q215	215	335-450
Q235	235	370-500
Q275	275	410-540
