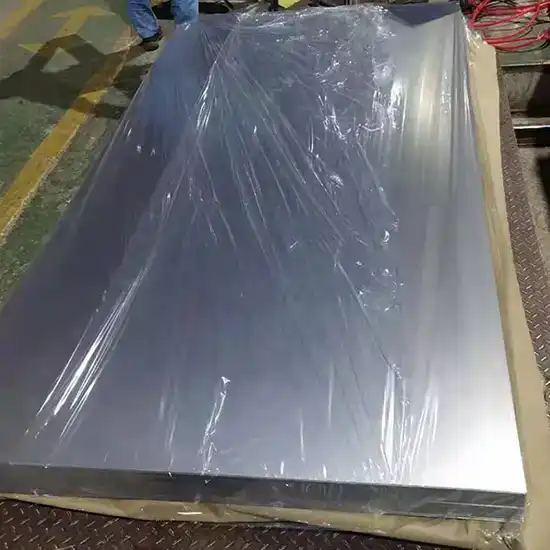

LR DH32 Shipbuilding Plate Supplier image
  • LR DH32 Shipbuilding Plate Supplier image 1
  • LR DH32 Shipbuilding Plate Supplier image 2
  • LR DH32 Shipbuilding Plate Supplier image 3
  • LR DH32 Shipbuilding Plate Supplier image 4
  • LR DH32 Shipbuilding Plate Supplier image 5
  • LR DH32 Shipbuilding Plate Supplier image 6

LR DH32 Shipbuilding Plate Supplier

Steel Standard:LR (Lloyd’s Register)

Rolling Type:Shipbuilding steel plate,High tension ship plate

Thickness:3mm-250mm

Width:1200mm-4200mm

Length:3000mm-18000mm

Heat Treatment:TMCP/Normalised

LR DH32, LR DH32 steel grade, LR DH32 steel plate, LR DH32 steel sheet, LR DH32 shipbuilding steel price,LR DH32 steel supplier and manufacturer

LR DH32 steel plate/sheet for shipbuilding is not only high-tensile-strength steel but also is the Hull structural steel with good toughness properties, higher strength, strong corrosion-resistance,the processing properties,and good welding properties. The LR DH32 grade steel plates have a yield strength of 45,500 psi (315 MPa), and ultimate tensile strength of 64,000-85,000 psi (440-590 MPa).

LR DH32 shipbuilding steel Application range

LR DH32 steel plate/sheet is used for shipbuilding and oil platform purpose and they are approved by ABS, DNV, GL, BV, LR, NK, RINA and other classification societies. What’s more, DH32 shipbuilding steel plate can be used in manufacturing the ship’s hull structure whose weight is below 10000 tons.

Specification Parameters
Basic Information

LR/DH32  high Strength Chemical Composition

Grade

The Element Max (%)

C

Si

Mn

P

S

Al

N

LR/DH32

0.18

0.05

0.9-1.6

0.035

0.035

0.015

Nb

V

Ti

Cu

Cr

Ni

Mo

0.02-0.05

0.03-0.10

0.02

0.35

0.20

0.40

0.08

Crack Sensitivity:  Pcm = (C+Si/30+Mn/20+Cu/20+Ni/60+Cr/20+Mo/15+V/10+5B)%
Carbon Equivalent:  Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%







LR/DH32   high strength property

Grade

Mechanical Property

Charpy V Impact Test

Thickness

Yield

Tensile

Elongation

Degree

Energy 1

Energy 2

LR/DH32

mm

Min Mpa

Mpa

Min  %

-20

J

J

t≤50

315

440-590

22%

20

31

50<t≤70

315

440-590

22%

26

38

70<t≤100

315

440-590

22%

31

46

Note: Energy 1 is transverse impact test, Energy 2 is longitudinal



Equivalent steel grade of LR/DH32

DNV

GL

ABS

BV

CCS

NK

KR

RINA

NV D32

GL-D32

AB/DH32

BV/DH32

CCS/DH32

K D32

R D32

RI/D32I/D32

Service Support
LR DH32 Shipbuilding Plate Supplier

Other than LR AH32 steel, we also supply other LR shipbuilding steel materials:

LR grade A LR grade B LR grade D LR grade E
LR AH32 LR DH32 LR EH32 LR FH32
LR AH36 LR DH36 LR EH36 LR FH36
LR AH40 LR DH40 LR EH40 LR FH40
