Small Automatic Edible Oil Refining Equipment

Complete Automatic Edible Oil Pressing has the advantages of reasonable design, excellent performance, simple operation, low power consumption, light weight and small occupied area. Compared with other refining equipment, it has the advantages of less investment, quick effect, no need for workshop, no need to lay foundation, and can be used indoors and outdoors.

Reference Price: $50000
inquiry now

Complete Oil Refining Equipment

Complete Automatic Edible Oil Refining Equipment offers advantages such as a reasonable design, excellent performance, simple operation, low power consumption, light weight, and a compact footprint. Compared with other refining equipment, it requires less investment, delivers quicker results, does not require a workshop or foundation, and can be used both indoors and outdoors.

It is suitable for refining crude oils from peanut kernels, sunflower seed kernels, cottonseed, soybeans, rapeseed, safflower seed, castor seed, and many other oil-bearing materials.

Click Here for a Quote

Refining oil press

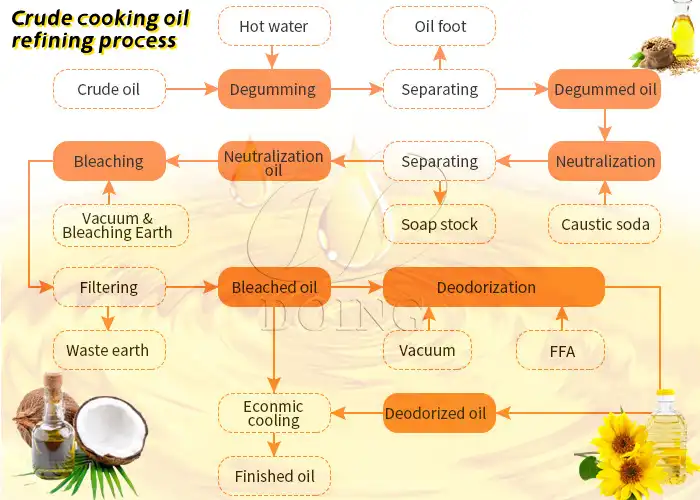

Refining Process of Oil Refining Equipment

  1. Continuous alkali refining shortens the contact time between oil and alkali solution, reduces fat saponification, lowers consumption, and improves efficiency.

  2. Decolorization adopts premixing and steam-mixing technology to enhance efficiency, save clay consumption, and simplify operation. Operating under a vacuum prevents oxygen from contacting hot oil, ensuring product quality, suppressing acid value increase, and reducing peroxide value.

  3. New continuous deodorization technology is applied in physical refining, suitable for oils with high acid value and low gum content. Practical production shows this technology offers strong acid removal capacity, excellent thermal decolorization, a high refining rate, and superior product quality.

  4. Multiple heat exchange processes maximize energy utilization, reduce steam consumption, and allow flexible process adjustment. The system is highly automated, environmentally friendly, and hygienic.

olive oil pressing

Types of Edible Oil

oil press

We are a leading professional supplier of edible oil equipment in China, providing complete edible oil production lines. We can custom-design Oil Refining equipment to process a wide variety of oilseed raw materials.

Click to send us your requirements and production capacity, and our sales consultants will recommend the right oil press equipment and provide you with the best quotation.

Specification Parameters
Basic Information
Model MK-60 MK-70 MK-80 MK-100 MK-125 MK-150
Power Power 2.2 kw 3kw 5.5 kw 7.5 kw 15kw 22kw
Pump 0.55 kw 0.75 kw 1.1kw 1.1kw 1.5kw 2.5kw
Heater 0.9 KW 1.8kw 2KW 2.2kw 2.8kw 4.5kw
Capacity 30-60kg/h 50-80kg/h 80-130kg/h 140-280kg/h 350-400kg/h 350-450kg/h
Weight 220kg 280kg 780kg 1100kg 1500kg 1500kg
Dimension(mm) 1200*780*1100 1400*860*1260 1700*1200*1500 1800*1300*1680 2100*1400*1700 2500*1750*2000



Service Support
Small Automatic Edible Oil Refining Equipment

FAQ

1. What are the most important features of a cold-pressed oil press?

Low-temperature pressing (typically ≤60–80°C) prevents nutrients and natural flavors from being destroyed by high heat. This process preserves active ingredients in the oil (such as vitamins and phytosterols) to the greatest extent possible, resulting in a healthier and more authentic oil.

2. What oils can be extracted using an oil press?

Common raw materials include:

  • Plant oils: peanuts, soybeans, rapeseed, olives, sesame seeds, walnuts, sunflower seeds, flaxseeds, etc.

  • Other materials: coconut (requires special processing), tea seeds, etc.

3. What does “cold-pressed oil” mean?

Cold-pressed oil is obtained at low temperatures (either without heating or with minimal heating) without undergoing high-temperature refining methods such as chemical solvent extraction or deodorization. Its key features include preservation of the natural flavor and nutrients of the raw materials, lighter color, and a lower smoke point (suitable for cold dishes and low-temperature cooking).

4. What materials are suitable for oil presses?

  • Cold press: Best for raw materials with high oil content that are sensitive to heat (such as nuts, olives, and flaxseed). These require pre-screening and impurity removal.

  • Hot press: Suitable for raw materials with medium oil content that require heating to release the oil (such as soybeans and rapeseed), or for materials that need moisture or impurity removal.

5. How easy is it to use an oil press?

Basic operation steps:

① Screen and clean the raw materials → ② Crush/pre-treat (required for some models) → ③ Load into the press chamber → ④ Start the machine → ⑤ Filter to obtain crude oil.

6. How hot does the oil get after pressing?

  • Cold press: The oil outlet temperature is generally ≤80°C, with little to no temperature increase (oil is extracted by mechanical pressure).

  • Hot press: Due to pre-roasting or heating, the outlet temperature can reach 100–150°C (heat helps increase extraction yield).

7. How much does an oil press cost?

Prices vary depending on type, production capacity, and brand:

  • Small household presses: From a few thousand to 10,000–20,000 yuan (e.g., screw and hydraulic presses), suitable for home use.

  • Commercial/industrial presses: From 50,000 yuan and above, depending on daily capacity (50 kg to 10 tons+) and automation level.

Recommendation: Choose based on your needs (home vs. commercial), raw material type, and budget. Prioritize cost-effectiveness and reliable after-sales service.



Packaging & Shipping

PACKAGE
Standard export wooden case packing, fit for multiple handing and long distance air/ marine shipping.

DELIVERY TIME
For customized type , delivery date need to be negotiated before taking order
