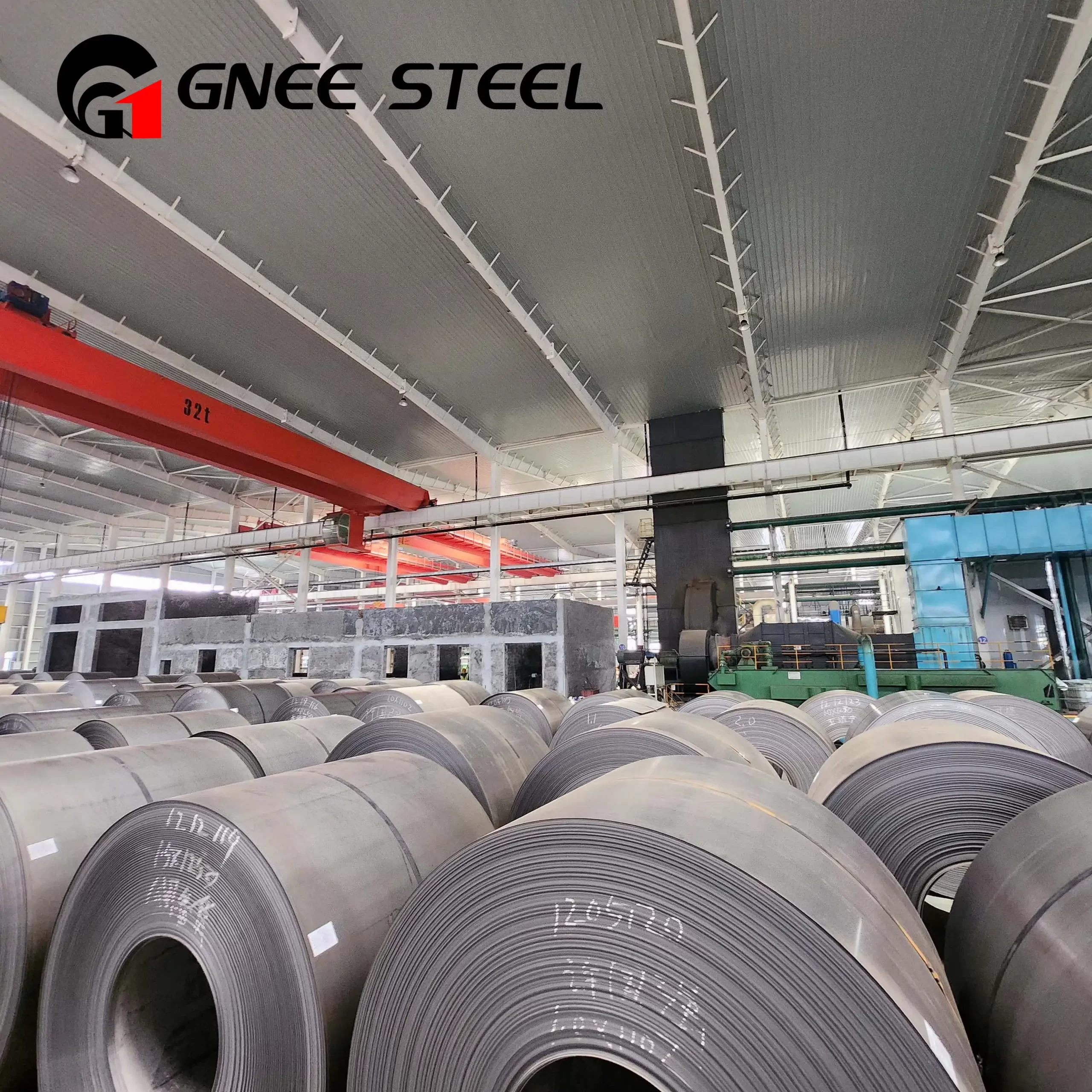

  • SPCC St12 EN10130 DC01 0.12-3mm Cold Rolled Steel Coil image 2

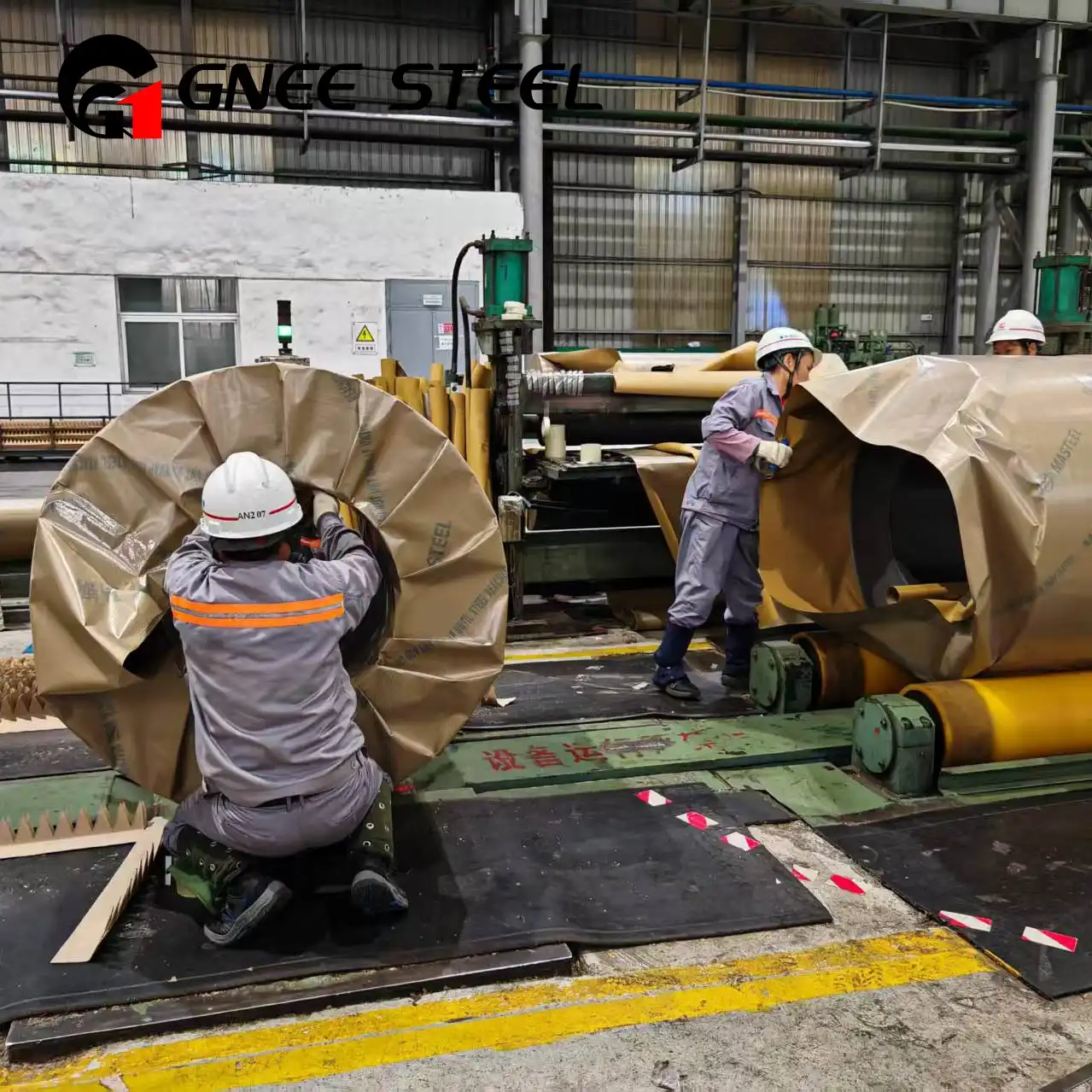

  • SPCC St12 EN10130 DC01 0.12-3mm Cold Rolled Steel Coil image 3
  • SPCC St12 EN10130 DC01 0.12-3mm Cold Rolled Steel Coil image 4

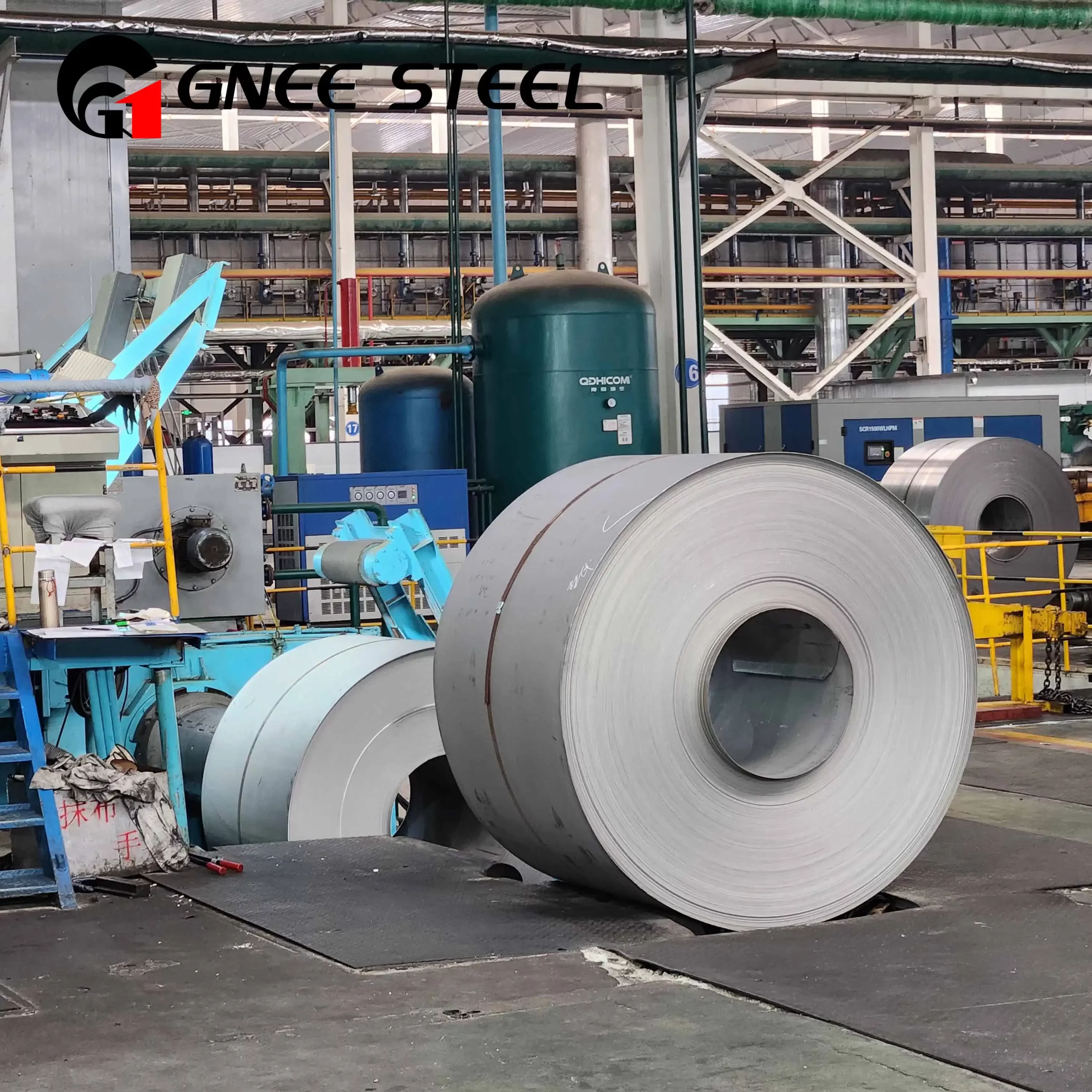

  • SPCC St12 EN10130 DC01 0.12-3mm Cold Rolled Steel Coil image 5
  • SPCC St12 EN10130 DC01 0.12-3mm Cold Rolled Steel Coil image 6

SPCC St12 EN10130 DC01 0.12-3mm Cold Rolled Steel Coil

Whether you need DC01 steel sheets with premium surface treatment, durable DC01 galvanized steel coils, corrosion-resistant DC01 galvanized steel pipes, or DC01 pre-coated galvanized steel (PPGI) with good coating adhesion, we can provide you with the most suitable solution.

Professional DC01 Steel Manufacturer

At GNEE Steel Group, we offer a full range of DC01 galvanized steel products to meet a variety of industrial needs.

Whether you need DC01 steel sheets with premium surface treatment, durable DC01 galvanized steel coils, corrosion-resistant DC01 galvanized steel pipes, or DC01 pre-coated galvanized steel (PPGI) with good coating adhesion, we can provide you with the most suitable solution.

With our high-standard production process and customized services, you can rest assured that choosing our products will ensure the smooth progress of your project and achieve long-term reliability.



SPCC St12 EN10130 DC01 0.12-3mm Cold Rolled Steel

DC01 is a cold-rolled, low-carbon steel grade with a standard chemical composition defined by EN 10130. This material is known for its excellent formability, high strength, and good surface finish. Due to these properties, DC01 finds applications in various fields:

  • Automotive Industry: DIN EN10130 DC01 Cold Rolled Steel  is used to manufacture car body parts such as roofs, doors, hoods, and trunk lids due to its formability and strength. It is also used for making chassis components like brackets and reinforcements due to its high strength.
  • Construction Industry:En 10130 Dc01 is used in the construction industry for making roofing and cladding materials due to its good formability and corrosion resistance when coated. Structural components: It can be used for structural components in buildings and infrastructure due to its strength and formability.
  • Electronic Equipment: EN 10130 DC01 sheet metal is used in electrical applications where a combination of formability, strength, and magnetic properties is required, such as in the production of electrical enclosures and components.
  • Home Appliance Industry: DC01 1.0330 material is used in the production of household appliances like refrigerators, washing machines, and ovens due to its formability, strength, and surface finish.
  • Metal Packaging: DC01 steel is used in the manufacture of metal packaging, including cans and containers, due to its ability to be formed into precise shapes and its resistance to corrosion.
Specification Parameters
Basic Information

DC01 Steel Data Sheet

The tables and lists below give grade DC01 steel data sheet and specification, including chemical composition, mechanical properties, welding, etc.

Chemical Composition

DC01 steel chemical composition is listed in the following table based on ladle analysis.

Country (Region) Standard Chemical Composition (ladle analysis), %, ≤ Surface quality Deoxidation Classification
Steel name (Steel number) C Mn P S
European Union EN 10130 DC01 (1.0330) 0.12 0,60 0,045 0,045 A, B Manufacturer’s discretion Non-alloy quality steel
EN 10152 DC01+ZE (1.0330+ZE) A, B
EN 10139 DC01-C390, C340, C440, C490, C590, C690

Notes:

  • EN 10130 – Cold rolled low carbon steel flat products;
  • EN 10152 – Electrolytically zinc coated cold rolled steel flat products.
  • EN 10139 – Cold rolled uncoated low carbon steel narrow strip.

DC01+ZE Steel Mechanical Properties

The table below lists DC01+ZE steel mechanical properties.

Mechanical properties, Part-1
Country (Region) Standard Steel name (Steel number) Yield strength (MPa), 0.2 % offset Tensile strength (MPa) Elongation, ≥ % Surface quality Absence of stretcher strain marks
European Union EN 10130 DC01 (1.0330) 140 (assumed) -280 270-410 28 A, B
EN 10152 DC01+ZE (1.0330+ZE) 3 months

Notes:

  • Yield strength: When the thickness is ≤0.7 mm but >0.5 mm, the yield strength value should be increased by 20 MPa. For thicknesses ≤0.5 mm, the value should be increased by 40 MPa.
  • Elongation: When the thickness is ≤0.7 mm but >0.5 mm, the minimum value of elongation should be reduced by 2 units. For thicknesses ≤0.5 mm, the minimum value shall be reduced by 4 units.
Mechanical properties, Part-2
Standard Designation Delivery condition Symbol Yield strength (MPa), 0.2 % offset Tensile strength (MPa) Elongation, A80, ≥ % Elongation, A50, ≥ % Hardness, HV Validity of the mechanical properties
EN 10139 DC01 (1.0330) Annealed A 270 – 390 28 30 ≤ 105 3 months
Skin passed LC ≤ 280 270 – 410 28 30 ≤ 115
Work hardened C290 200 – 380 290 – 430 18 20 95-125
C340 ≥ 250 340 – 490 Not required Not required 105-155
C390 ≥ 310 390 – 540 117-172
C440 ≥ 360 440 – 590 135-185
C490 ≥ 420 490 – 640 155-200
C590 ≥ 520 590 – 740 185-225
C690 ≥ 630 ≥ 690 ≥ 215

Electrolytic Zinc Coatings

Coating Designation Nominal zinc coating values for each surface Minimum zinc coating values for each surface
Thickness, µm Mass, g/m² Thickness, µm Mass, g/m²
ZE25/25 2,5 18 1,7 12
ZE50/50 5,0 36 4,1 29
ZE75/75 7,5 54 6,6 47
ZE100/100 10,0 72 9,1 65
