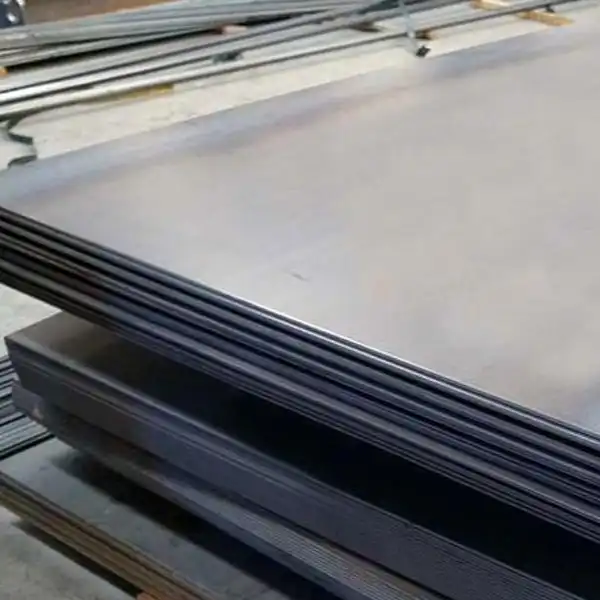

ABS Grade EQ47 Steel Plate

Class Cert.: ABS/BV/CCS/DNV/KR/LR/NK/RINA/RS/PRS

Material: Low Alloy Steel

Thickness: 6mm-100mm, or customized

Width: 900mm-4800mm, or customized

Length: 3000mm-25000mm, or customized

Condition of Delivery: A/HR/N/CR/Q+T/TMPC, or as request

Stock: In stock

ABS Grade EQ47 Shipbuilding steel plate ABS Grade EQ47 Ship Steel plate ABS Grade EQ47 Marine Steel plate ABS Grade EQ47 Steel Plate

Introduction
Parameters
Service

ABS Grade EQ47 Steel Plate Supplier and Manufacturer

Our ABS Grade EQ47 is a high-strength, thermo-mechanically controlled rolled structural steel having a minimum specified yield strength of 67 ksi and specified minimum Charpy V-notch impact toughness properties.ABS Grade EQ47,ABS EQ47 steel plate,ABS EQ47 ship plate are mainly used to build vessels which are sailing in low temperature oceans.When rolling ABS EQ47, Tempered and Quenched shall be done for heat treatment,and low temperature impacting test have to be done under minus 40 centigree.For improve the thickness-direct steel property for shipbuilding steel plate ABS EQ47,Z-test for ABS Grade EQ47 is also necessary,our customers can choose three different classes,Z15,Z25 and Z35.

Applications

Typical applications include shipbuilding and mobile offshore drilling units and structures.

Additional Condition

UT(Ultrasonic examination), AR(As Hot Rolled only), TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, The Third Party Test (such as SGS Test), Coated or Shot Blasting and Painting.

Specification Parameters

Basic Information

AB/EQ47 Extra high Strength Chemical Composition in Tempering and Quenching
Grade	The Element Max (%)
Grade	C	Si	Mn	P	S	N
AB/EQ47	0.20	0.55	1.7	0.035	0.035	0.02

Crack Sensitivity: Pcm = (C+Si/30+Mn/20+Cu/20+Ni/60+Cr/20+Mo/15+V/10+5B)%
Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%

AB/EQ47 Extra high strength property in tempering and quenching
Grade	Mechanical Property			Charpy V Impact Test
	Yield	Tensile	Elongation	Degree	Energy 1	Energy 2
	Min Mpa	Mpa	Min %	-40	J	J
AB/EQ47	460	570-720	17	-40	31	46
Note: Energy 1 is transverse impact test, Energy 2 is longitudinal
