Home > products> EN 10025-5 S355J2W Steel Plate

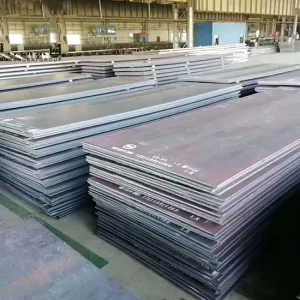

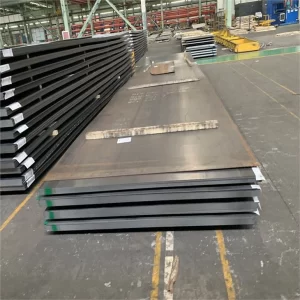

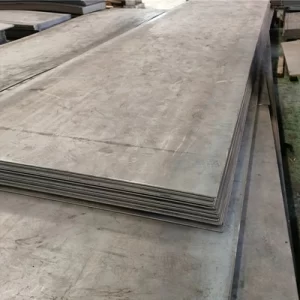

EN 10025-5 S355J2W Steel Plate image
  • EN 10025-5 S355J2W Steel Plate image 1
  • EN 10025-5 S355J2W Steel Plate image 2
  • EN 10025-5 S355J2W Steel Plate image 3
  • EN 10025-5 S355J2W Steel Plate image 4
  • EN 10025-5 S355J2W Steel Plate image 5
  • EN 10025-5 S355J2W Steel Plate image 6

EN 10025-5 S355J2W Steel Plate

S355J2WP steel grade is a hot rolled products of structural steels in technical delivery conditions with improved atmospheric corrosion resistance. The main alloying elements are chromium nickel and copper with added phosphorous which gives it excellent self protecting qualities. As the steel reacts with elements in the atmosphere, the material forms a layer of rust over time which in essence protects the steel from corrosion.

S355J2W Corten Steel structural steel plates S355j2w Steel heavy plate EN 10025 S355J2W wear resistant plate DIN 1.8963 corten sheet metal S355J2W Weathering Steel hot rolled plates

What is EN 10025-5 S355J2W steel?

S355J2WP steel grade is a hot rolled products of structural steels in technical delivery conditions with improved atmospheric corrosion resistance. The main alloying elements are chromium nickel and copper with added phosphorous which gives it excellent self protecting qualities. As the steel reacts with elements in the atmosphere, the material forms a layer of rust over time which in essence protects the steel from corrosion.



S355J2W vs. S355J2+N

The S355J2W steel plate is an atmospheric corrosion resistant weather resistant steel grade. The S355J2W steel plate is an unalloyed construction steel grade. It becomes weather resistant when alloyed with copper. The S355J2W plate also has a higher carbon content that increases its strength compared to the S355J2+n grade.



Corten steel EN 10025 S355j2w plate equivalent material

Standards Country Value
UNS North America –
WNR Russia 1.8965
ASTM America A588/ A242
ASME Australia SA588, SA242
JIS Japan SMA50CP
BS United Kingdom WR50C
GOST Russia –
AFNOR France E36 WB 4
EN Europe S355J2G2W
AMS United States –
ANSI America –
SAE United States –
AS Australia –
DIN German WTSt52-3
Specification Parameters
Basic Information

Chemical composition % of the Product analysis of grade S355J2W

C Si Mn Cu P S Cr N
0.19 0.55 0.45-1.60 0.20-0.60 0.035 0.035 0.35-0.85 0.010

Mechanical properties of grade S355J2W

Temperature -20 -10 0 20
Notch impact test. Min. absorbed energy J 27



Nominal thickness (mm) to 16 16 – 40 40 – 63 63 – 80 80 – 100 100 – 150
ReH – Minimum yield strength (MPa) 355 345 335 325 315 295



Nominal thickness (mm) to 3 3 – 100 100-150
Rm -Tensile strength (MPa) 510-680 470-630 450-600
Service Support
EN 10025-5 S355J2W Steel Plate

Available Services of S355J2W Steel Plate

  • Polish
  • Pickling
  • Forging
  • Bending
  • Cladding
  • Annealed
  • Cutting
  • Minor Fabrication
  • Heat Treatment
  • Rolling

Packaging

  • Industrial packing techniques
  • Big rolls with spools
  • Bundles with plastic wrapping
  • Wooden boxes/pallets/crates

Inspection Plan

  • Reduction of Area Measurement.
  • Ultrasonic Examination.
  • Single Heat Bundles
  • Tensile Strength (Maximum)
  • Drop-weight Test
  • Simulated Post-weld Heat Treatment
  • Product Analysis
  • Charpy V-notch Impact Test
