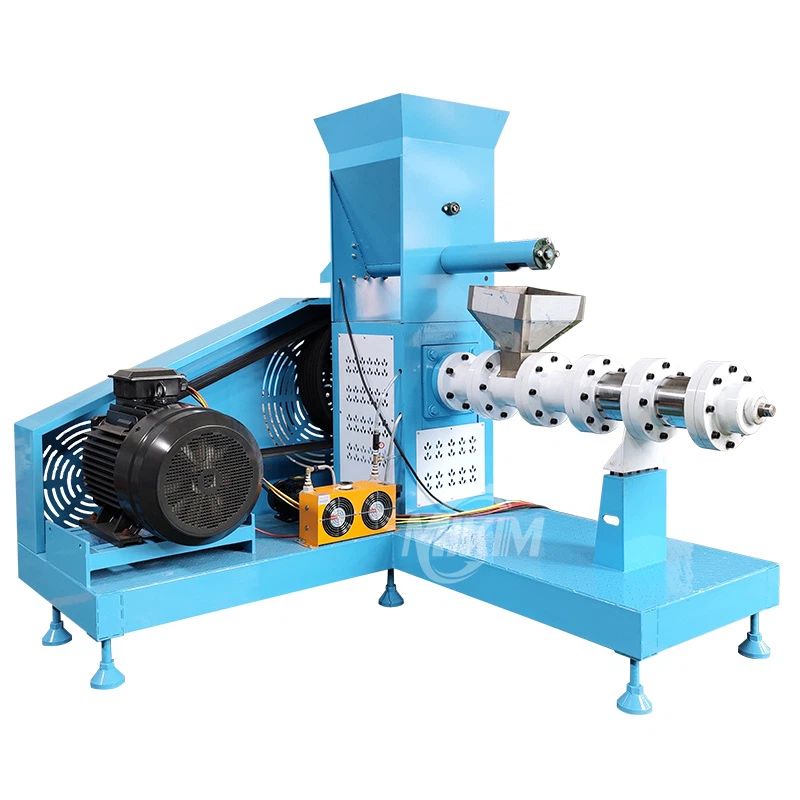

Fish Feed Pet Food Extruder Machine

Fish Feed Extruder Machines are essential in the animal nutrition and livestock farming industries. They play a vital role in improving the quality and efficiency of feed production, ultimately contributing to better livestock health and productivity. These machines ensure a consistent supply of essential nutrients in animal feed, resulting in healthier and more productive animals.

The Fish Feed Extruder Machine is a newly designed processing equipment developed to meet the growing market demand for dog food and floating fish pellets. It has been successfully created based on our many years of research experience in food machinery.

This dog food-making machine gives pet food novel shapes, unique tastes, and attractive colors. It also meets the diverse needs of the modern market with its superior features, such as scientifically formulated nutrition and easy digestibility.

In addition, this dog food making machine can produce pet food with a cored filling, which makes the products even more appealing to modern pets.

Click Here for a Quote

Design of Fish Feed Formula

1. Before designing a fish feed pellet formulation, it is important to identify the fish species and their growth stage in order to determine the required nutrient content, including protein, energy, and other essentials.

2. The fish feed formulation should not only meet the fish’s protein requirements but also maintain a proper energy-to-protein ratio. An excessively high or low ratio of energy to protein can negatively affect fish growth.

3. In addition to nutrition, the satiety of fish should also be considered when formulating feed pellets. At different growth stages, nutrient requirements vary. For example, the protein content of feed pellets for carp fry should be 41%–43%, for fingerlings 37%–42%, and for adult fish 28%–32%.

How a Fish Feed Extruder Machine Works

Animal feed ingredients—including grains (such as corn, wheat, and barley), protein sources (such as soybean meal), vitamins, minerals, and additives—are first blended and ground into a uniform powder, often referred to as the feed formula.

In some extruder designs, the feed formula is conditioned with steam and water to achieve the desired moisture content and consistency. Conditioning helps the ingredients bind together during pellet formation.

The conditioned feed is then fed into the extruder chamber, where it comes into contact with a rotating screw (or screw conveyor). The screw conveys the feed forward while simultaneously heating and pressurizing it. As the mixture moves through the extruder barrel, it is compressed and heated. The combination of pressure, heat, and mechanical force softens and plasticizes the feed. At the end of the extruder, a die with small holes shapes the softened mixture into uniform pellets.

The freshly extruded pellets are cut to the desired length upon exiting the die. The cutting mechanism can be adjusted to produce pellets of different sizes. The hot pellets are then rapidly cooled to room temperature to stabilize their structure and prevent overheating, typically using a countercurrent cooler or air-cooling system.
